SY

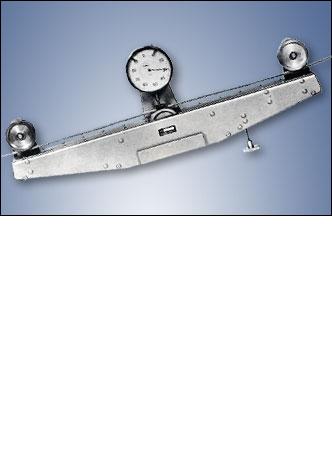

Cable / Wire Rope Tension Meter |
A rugged, lightweight portable field tension meter which measures line tensions - without breaking into the line.
Operation is based on measuring cable deflection caused by the application of a constant force mid-way between two pulley supports. Cable tensions are then determined to an accuracy of ± 1% by referring to a calibration chart especially prepared for the cable size and type being measured.
*Actual tension range depends on the type of material being tested. Values shown are for average mild steel wire rope. Select model by cable diameter. |
 Rugged Cable / Wire Rope Tension Meter |
| |
| Model |
Range | Cable Diameters |
| SY-1000 |
850 - 5500 lbs | 1/2" - 1" | | |
|
CTM
Cable Tension Meter |  |
Includes NIST-Traceable Calibration Certificate | | Click image for more info
|
| Dimensions |
42" x 10" x 3.5" |
| Weight |
8 pounds |
| Accuracy |
± 1% |
|
|
Features
