CAP-MTG
Motorized Cap Torque Tester |
3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
The CAP-MTG motorized cap torque tester accommodates sample containers up to 7" in diameter and up to 9.4" in height. Torque markings on the cap vise enable consistent gripping of the cap. Operate in either clockwise or counterclockwise directions.
The CAP-MTG has programmable high/low setpoints to enable go/no-go testing. YELLOW lights up for measurements less than Low setpoint, GREEN for between High and Low setpoints, and RED for over High setpoint and testing automatically stops.
Use the real time mode to display torque transients, or the peak mode to capture the peak torque. Selectable measuring units of lbf-in, kgf-cm, or N-cm. Store up to 1,000 values in memory, which can be transmitted using USB output.

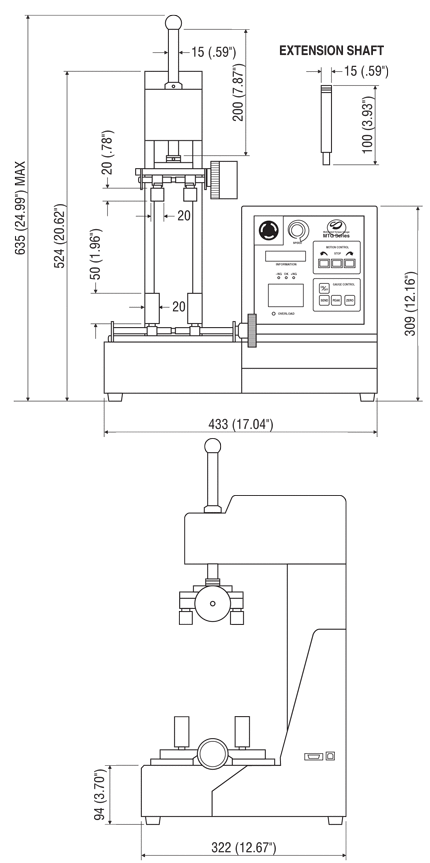

The CAP-MTG motorized cap torque testers include an extension shaft for short containers and 2" high pegs. |
 Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing | | lbf-in, kgf-cm, and N-cm units are selectable n USB, RS-232C, Digimatic and Analog outputs | | Overload capacity 150% of F.S. with alarm at 110% F.S. | | Sample container diameters from .8"~7"; cap diameters .8"~3.5"; container height 3.2"~9.4" | | 1,000 Data memory for computer download |
| | Both CW and CCW operation | | Real time and peak mode (selectable) | | Rotating speed 3~90° per second | | Sampling speed 1,000 per second | | Heavy duty all-metal construction for exceptional durability |
|
| Model |
Capacity (Resolution)
|
|
lbf-in |
kgf-cm |
N-cm |
| CAP-MTG-15 |
15.00 (0.01) |
20.00 (0.01) |
200.0 (0.1) |
| CAP-MTG-40 |
40.00 (0.01) | 50.00 (0.01) |
500.0 (0.1) |
| CAP-MTG-85 |
85.0 (0.1) |
100.0 (0.1) |
1000 (1) |
|
|
|
