DTX2
Cap Torque Tester

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD

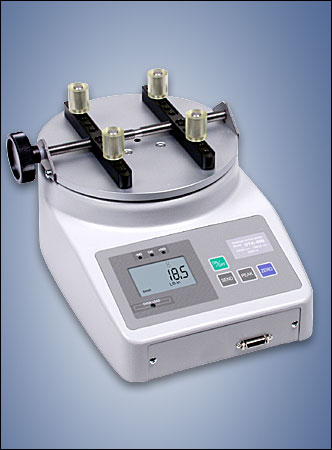

The new easy-to-use Check-Line DTX2 cap torque tester accurately measures twist on and twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

2 Year Warranty

Suitable for containers from 1/2" - 7" (13 - 178mm) in diameter

lbf-in, kgf-cm, and N-cm units are selectable

Real time and peak mode (selectable)

1000 Data memory for computer download

Includes NIST-Traceable calibration certificate

Overload capacity 200% of F.S.

Both clockwise and counterclockwise operation

Can be operated with internal rechargeable battery or AC adapter

Tare function

Serial Output for connection to Printer or PC

ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

DTX2 Cap Torque Tester

Model	Capacity lbf-in	Capacity kgf-cm	Capacity N-cm
DTX2-15B	15.00 (0.01 lbf-in)	20.00 (0.01 kgf-cm)	200.0 (0.1 N-cm)
DTX2-40B	40.00 (0.01 lbf-in)	50.00 (0.01 kgf-cm)	500.0 (0.1 N-cm)
DTX2-85B	85.00 lbf-in (0.1 lbf-in)	100.0 kgf-cm (0.1 kgf-cm)	1000 N-cm (1 N-cm)

Accuracy: ±0.5% F.S. ±1 LSD (Resolution)

Cap dia. in mm	Phenolic/ Urea Cap On Glass		Phenolic/Urea Cap on Plastic		PP/PE Cap on Glass		PP/PE Cap on Plastic
Cap dia. in mm	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque	Close Torque	Open Torque
15	8	4	6	3	12	7	8	4
18	9	5	7	4	13	8	9	5
20	10	5	8	4	15	9	10	5
22	11	6	9	5	17	10	11	6
24	12	6	10	5	18	11	12	6
28	14	7	12	6	21	12	14	7
33	18	9	15	7	24	14	17	8
38	20	10	17	7	29	17	19	9
43	22	11	18	9	33	20	22	11
48	24	14	20	10	26	22	24	12
58	28	14	24	12	44	26	29	14
70	35	18	28	14	52	32	35	17
89	45	22	36	18	65	40	45	22
100	50	25	40	20	75	38	50	25
