R53
Closure Toruqe Sensor

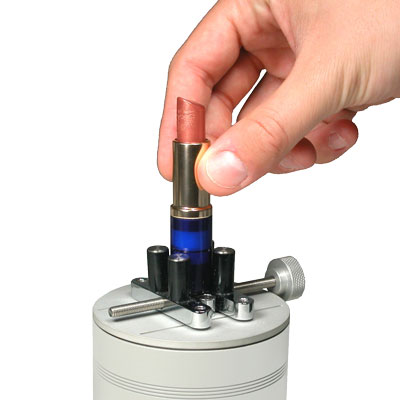

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 in [14 - 148 mm] in diameter. Models contain reversible jaws or movable posts to easily accommodate a variety of shapes and sizes. Capacities available from 10 ozin to 100 lbin.

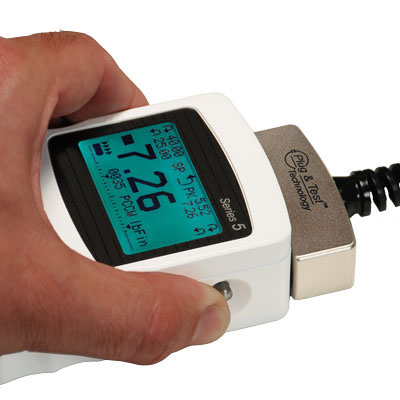

Compatible with the 5i and 3i digital indicators

Rugged aluminum housing

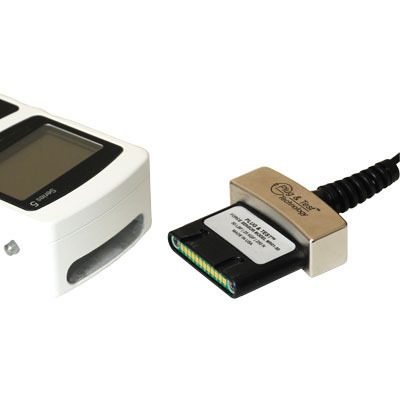

Unique Plug & TestTM connector holds all calibration and configuration data

NIST-traceable certificate of calibration included

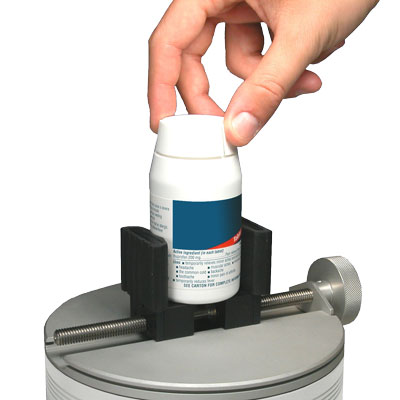

Reversible jaws for round or rectangular containers

May be used for torque tool calibration or as a component of a torque testing system

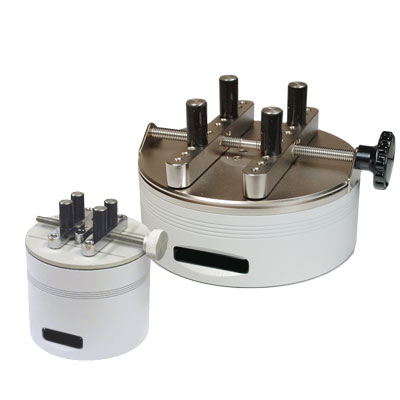

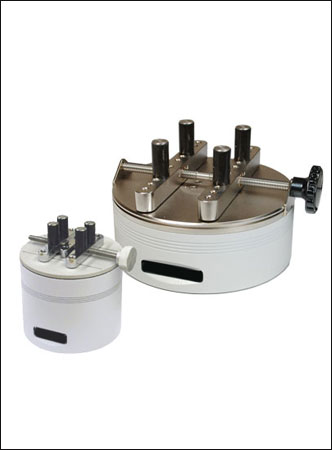

Two form factors are available, for 12 lbfin through 100 lbfin capacities, and for 10 ozfin through 50 ozfin capacities.

Show with: Series 5i Series 3i

Model	ozFin	lbFin	lbFft	gFcm	kgFmm	Nmm	Ncm	Nm
MR53-10Z	10 0.0110 0.01	--	-N/A	700 0.5N/A	7 0.0057 0.005	70 0.05N/A	7 0.0057 0.005	-N/A
MR53-20Z	20 0.0220 0.02	--	-N/A	1400 1N/A	14 0.0114 0.01	140 0.1N/A	14 0.0114 0.01	-N/A
MR53-50Z	50 0.0550 0.05	--	-N/A	3600 5N/A	36 0.0536 0.05	350 0.5N/A	35 0.0536 0.05	-N/A
MR53-12	--	12 0.0112 0.01	1 0.001N/A	-N/A	140 0.1140 0.1	-N/A	135 0.1135 0.1	1.35 0.001N/A
MR53-50	--	50 0.0550 0.05	4 0.005N/A	-N/A	580 0.5580 0.5	-N/A	570 0.5570 0.5	5.7 0.005N/A
MR53-100	--	100 0.1100 0.1	8 0.01N/A	-N/A	1150 11150 1	-N/A	1150 11150 1	11.5 0.01N/A

N/A = Gauge is unable to display these units
