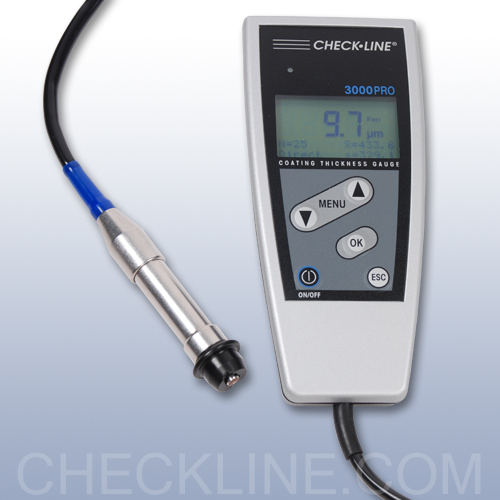

3000PRO Series
Coating Thickness Gauge |
|
5 Models |
|
DCF-3000PRO |
Ferrous Only Model |
|
DCN-3000PRO |
Non-Ferrous Only Model |
|
DCFN-3000PRO |
Combination Ferrous & Non-Ferrous Model |
|
DCFN-3000PRO-90 |

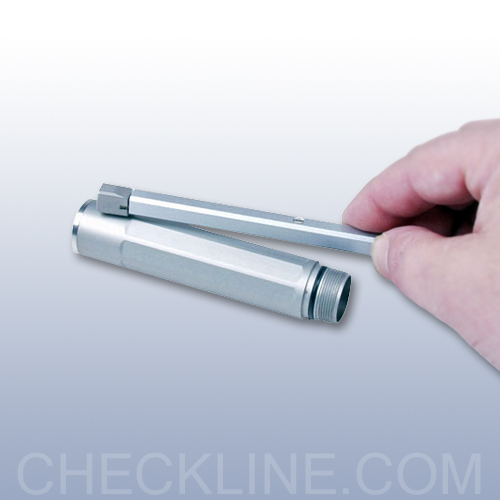

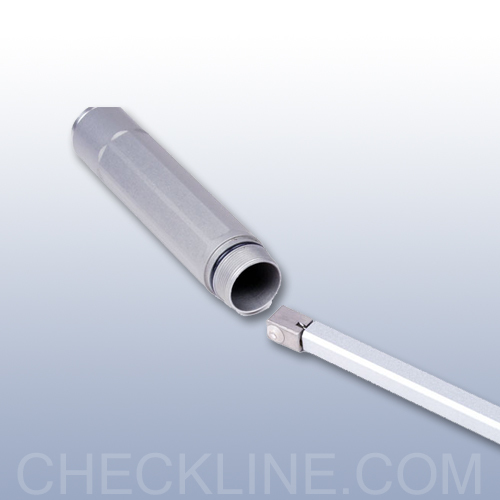

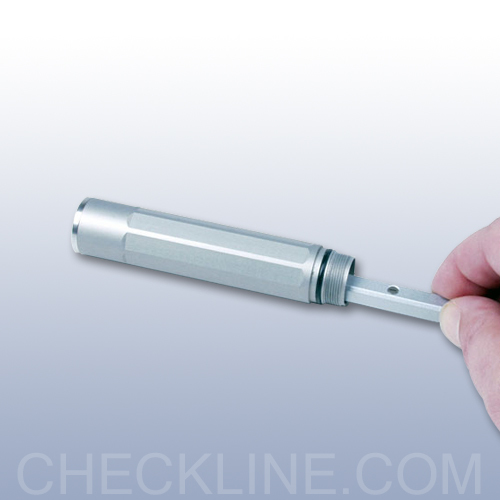

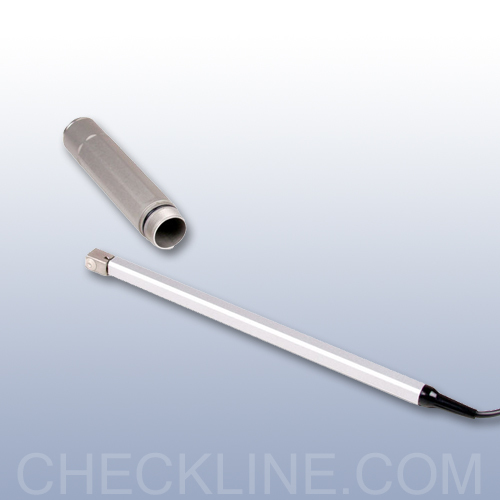

Comb. Ferrous & Non-Ferrous with 90° Wand
Probe |
|

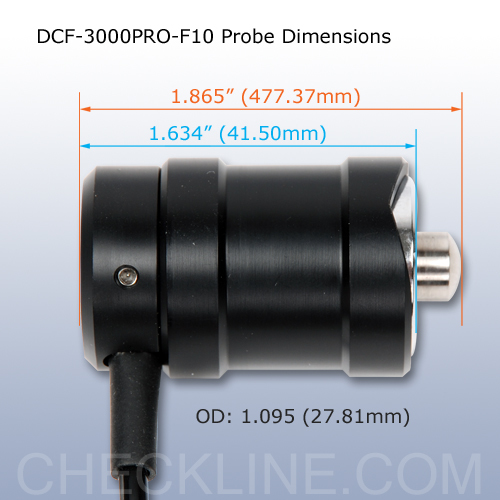

DCF-3000PRO-F10 |
Ferrous Only Model for Coatings up to .400" / 10mm |
|
Measuring Range |
|
3000PRO & 3000PRO-90 |
0-60 mils (0-1500um) |
|
DCF-3000PRO-F10 |
0-400 mils (0-10,000um) |

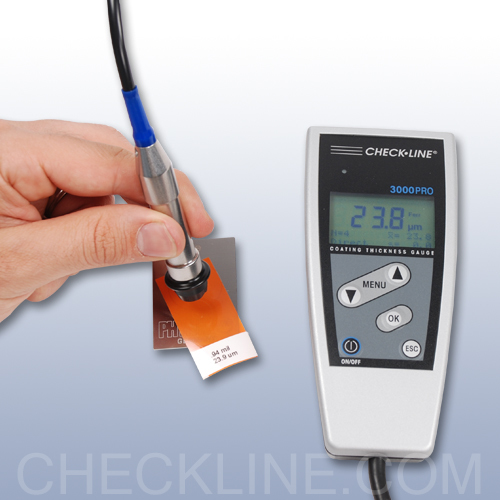

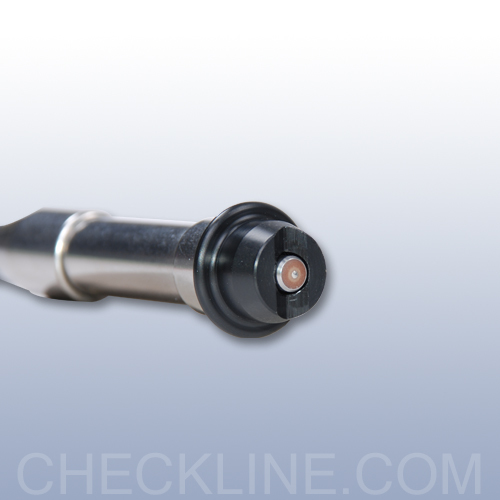

The new Check-Line 3000PRO Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for:
paint and electroplated coatings on iron and steel
paint and anodising coatings on non-ferrous metals and on austenitic stainless steels
The recording and further processing of stored measurement data are just as easy to carry out as the measurement itself. The file names can be alphanumerically assigned via an input panel and managed in a data memory. |
 Automatic identification of the substrate | | Calibration-free measurements (calibration only in exceptional cases) | | Mobile and stationary operation with only one gauge | | Highly wear-resistant measuring poles made of carbide metal | | Special probes for unusual
measurement tasks | | Precise measurements on
different geometries thanks
to simple calibration methods | | Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces | | Scan mode for the quick recognition of coating thickness variations on
large surfaces, including display of minimum and maximum readings | | Display backlight for bad ambient lighting conditions | | Online statistics with all statistical parameters |
| | Easy to operate, well-known from mobile phones | | Intuitive menu guidance via dialog with the user | | Free choice of language –
German, English, French | | Extensive data memory for the management of different measurement series | | Alphanumerical file names can be individually stored for every measurement task | | Infrared interface for wireless data transfer to printer and PC | | No additional data transfer software
required thanks to the use of
Windows® standard application
(HyperTerminal) | | Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F | | Includes NIST Calibration Certificate | | 1 Year Warranty |
|
 |

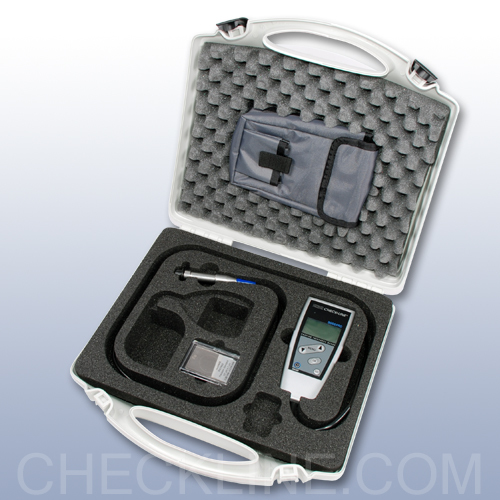

| | | | The 3000PRO is supplied as a complete that includes the gauge, probe, manufacturers calibration certificate, a ferrous and or non-errous zero plate(model dependant), 2 calibration foils, 2 AA batteries, soft pouch, instruction manual all in a rugged plastic carrying case. |
 |
|

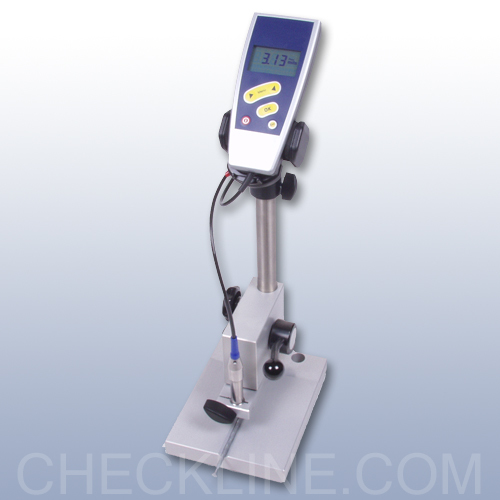

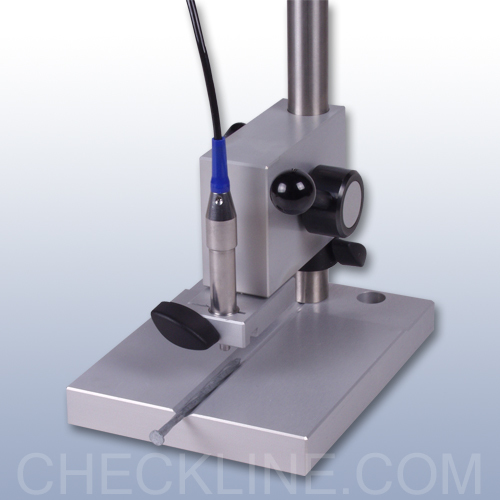

3000-PTS
Coating Thickness Gauge Test Stand |  |
Spring loaded lever for fast & precise travel It's Compact size and light weight make it an Ideal test stand for all workplaces | | Click image for more info | | ___________________________________________ |
|
3000-IRP
Infra-Red Printer for 3000 Series |  |
Infra-Red data transfer 16 lines/second print speed | | Click image for more info | | ___________________________________________ |
|
NTS
NIST Certified Plastic Shims |  |
| | Click image for more info | | ___________________________________________ |
|
TS-5CG
Commercial Grade Shim Set |  |
| | Click image for more info
|
 |
Minimum Radius
for Convex Surfaces |
0.08" (2 mm) |
| Minimum Radius
for Concave Surfaces |
0.2" (5 mm) |
 |
Minimum Headroom |
4" (100 mm) |
 |
Minimum Sample
Diameter |
0.2" (5 mm) |
 |
Minimum Substrate Thickness - F |
8 mils (0.2 mm) |
| Minimum Substrate Thickness - NFe |
2 mils (50 µm) |
|
Standard
probe & and FN/90° probe |
|
Mils |
| 0.00 - 9.99
mils |
0.01 mils |
| 10.00 -
24.98 mils |
0.02 mils |
| 25.00 -
49.95 mils |
0.05 mils |
| 50.0 - 99.9
mils |
0.1 mils |
| |
|
Microns (µm) |
| 0.0 - 99.9
µm |
0.1 µm |
| 100.0 -
249.8 µm |
0.2 µm |
| 250.0 -
499.5 µm |
0.5 µm |
| 500 - 999 µm |
1 µm |
| 1.000 -
1.998 mm |
0.002 mm |
|
| Measuring principle: |
Magnetic induction method (F-version); Eddy current method (N-version) |
| Measuring range: |
3000PRO & 3000PRO-FN90:
0 - 60.00 mils / 0 - 1500 µm
3000PRO-F10:
0 - 400 mils / 0 - 10,000 µm |
| Tolerance: |
± (0.7 µm/0.04 mils + 1% of reading) |
| Resolution: |
Refer to RESOLUTION TABLE, above |
| Display: |
4-digit display (digit height 10 mm/0.4”) and 32 alphanumerical characters; switchable backlight |
| Minimum measurement area: |
5 mm x 5mm/0.2” x 0.2” |
| Minimum curvature radius: |
convex 2mm/0.08”; concave 5mm/0.2” |
| Minimum substrate thickness: |
0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions) |
| Calibration methods: |
- Factory calibration: no calibration required for standard applications
- Zeroing (1-point calibration): measurements on small geometries
- Zeroing and foil calibration (2-point calibration): increased measuring accuracy
- Two-foil calibration: especially for rough, sand-blasted surfaces
- CTC: calibration on coated object if zeroing is not possible
- Zero offset: addition/subtraction of a constant value to/from the reading |
| Limit values: |
Selectable; optical and acoustic signal if limit value is exceeded |
| Scan mode: |
For continuous measurements; for the quick recognition of coating thickness variations;
with permanent display of minimum and maximum reading |
| Statistics: |
Single-value statistics: n, avarage x, s, kvar, min, max, cp, cpk from max. 10,000 readings
Block-value statistics: n, avarage x , avarage s, avarage kvar , min, max, cp, cpk; block size 3 to 100 readings |
| Data memory: |
10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable |
| Interfaces: |
Infrared and serial RS232 interface |
| Language: |
Operator prompting and documentation in German, English, French (optional other languages) |
| Operating temperature: |
0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F) |
| Surface temperature: |
5° F - 140° F / -15° C - 60° C (standard)
5° - 302° F / 15° - 150° C (w/optional footer) |
| Power supply: |
2 x round cell (AA) 1.5 V up to 60 hours of operating time |
| Housing/keypad: |
Protection class IP52 (protection against dust and dripping water) |

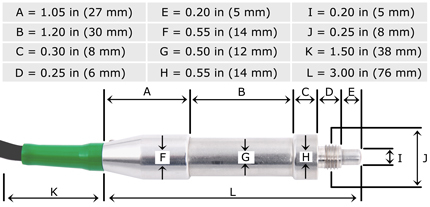

| Dimensions: |
Gauge: 140 mm x 62 mm x 30mm/5.6” x 2.5” x 1.2” (HxWxD)
Probe: dia. 14 mm x 83mm/dia. 0.56” x 3.3” |
| Weight: |
approx. 200 g/7 oz (gauge including batteries and probe) |
| Standards: |
DIN EN ISO, ASTM, BS |
| Warranty |
1 Year |
| Calibration Certificate |
Included |
|
|
