3000PS Series
Coating Thickness Gauge |
3 Models
DCF-3000PS - Ferrous Only Model
DCN-3000PS - Non-Ferrous Only Model
DCFN-3000PS - Combination Ferrous & Non-Ferrous Model
Measuring Range: 0-60.00 mils (0-1500 µm)

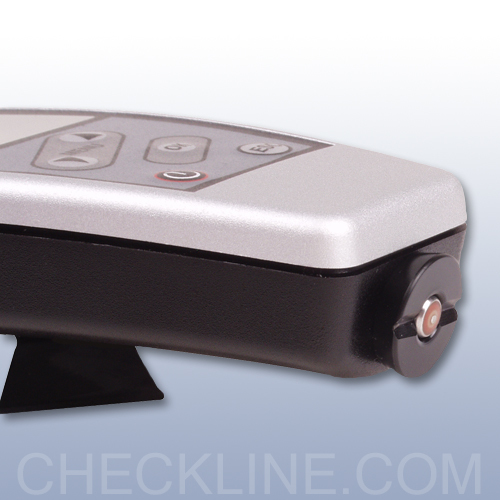

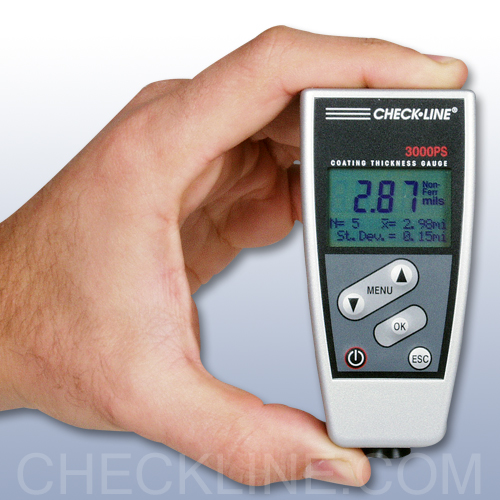

The DCFN-3000PS is an exceptionally small hand-held gauge with integrated probe for fast, practical and precise coating thickness measurement.
 It is ideal for the non-destructive testing of all non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc... on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method). |
 Dependable accuracy over the entire range of the gauge, not just at "calibration check" points. | | Measures to 0.01 mil (0.1 µm), automatically rounding off to the nearest 0.1 mil (1 µm). | | Keypad-selectable English or metric units. | | Continuous reading update detects soft coatings as probe tip "sinks" into them. | | Convient compact design |
| | Longer lasting, driftless calibration...
Set it and forget it for long periods of time and from job to job | | Very reliable operation...
Consistent, repeatable measurements | | NIST Certificate Included at no additional cost | | 1 Year Warranty |
|

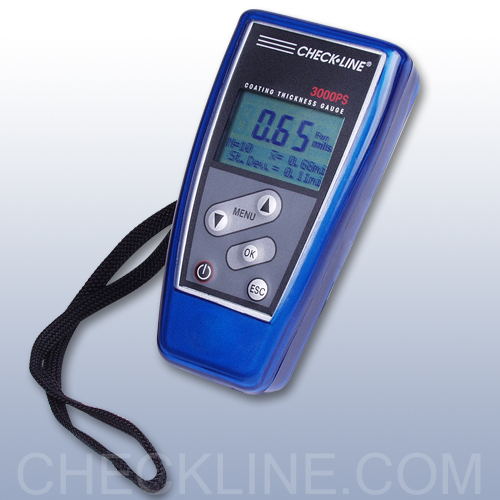

| 3000PS shown in protective rubber shell |

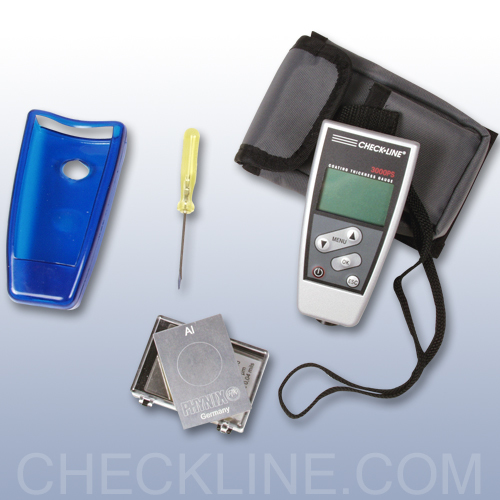

| | | | The 3000PS is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependant), 2 calibration standards, 2 AAA batteries, soft carrying pouch, protective rubber shell, mini screw driver, instruction manual and manufacturer´s calibration certificate |
 |
|
3000-IRP
Infra-Red Printer for 3000 Series |  |
Infra-Red data transfer 16 lines/second print speed | | Click image for more info | | ___________________________________________ |
|
NTS
NIST Certified Plastic Shims |  |
| | Click image for more info | | ___________________________________________ |
|
TS-5CG
Commercial Grade Shim Set |  |
| | Click image for more info
|
 |
Minimum Radius
for Convex Surfaces |
0.12" (3 mm) |
| Minimum Radius
for Concave Surfaces |
0.2" (5 mm) |
 |
Minimum Headroom |
4" (100 mm) |
 |
Minimum Sample
Diameter |
0.2" (5 mm) |
 |
Minimum Substrate Thickness - F |
20 mils (0.5 mm) |
| Minimum Substrate Thickness - NFe |
2 mils (50 µm) |
|
Mils |
| 0.00 - 9.99
mils |
0.01 mils |
| 10.00 -
24.98 mils |
0.02 mils |
| 25.00 -
49.95 mils |
0.05 mils |
| 50.0 - 99.9
mils |
0.1 mils |
| |
|
Microns (µm) |
| 0.0 - 99.9
µm |
0.1 µm |
| 100.0 -
249.8 µm |
0.2 µm |
| 250.0 -
499.5 µm |
0.5 µm |
| 500 - 999 µm |
1 µm |
| 1.000 -
1.998 mm |
0.002 mm |
|
| Range |
0 - 60.00 mils
0 - 1500 µm |
| Accuracy |
±0.04 mils / 1µm + 1% of reading |
| Resolution |
Refer To Table Above |
| Display |
back-light, 4-digit alphanumeric, digit height 10mm |
| Minimum Measuring Area |
0.2" x 0."2 (5 mm x 5 mm) |
| Minimum Curvature Radius |
convex: 0.12" (3 mm), concave: 0.2" (5 mm) |
| Minimum Substrate Thickness |
Ferrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 µm |
| Calibration |
factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value |
| Memory |
80 readings |
| Statistics Program |
Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings |
| Set Limits |
Adjustable selectable with acoustic alarm system |
| Data Output |
Infrared IrDA Standard |
| Operating Temp. |
32 °F to 122 °F / 0 °C to 50 °C |
| Surface Temp. |
5 °F to 140 °F / -15 °C to 60 °C |
| Storage Temp. |
-4 °F to 140 °F / -20 °C to +60 °C |
| Power |
2 AAA 1.5V |
| Dimensions |
4" x 2" x 1" (99mm x 48mm x 24 mm) |
| Weight |
3 oz (85 g) |
| Protection Class |
IP 52 (proof against dust and dripping water) |
| Standards |
DIN, ISO, ASTM, BS |
| Warranty |
1 Year |
 | |
|
|
