PosiTector 200
Coating Thickness Gauge for wood, concrete, plastic and more... |
2 Ranges Available in Basic or Advanced Versions
PT-200B - 0.5 - 40 mils (13 - 1000 microns)
PT-200C - 2 - 150 mils (50 - 3800 microns)

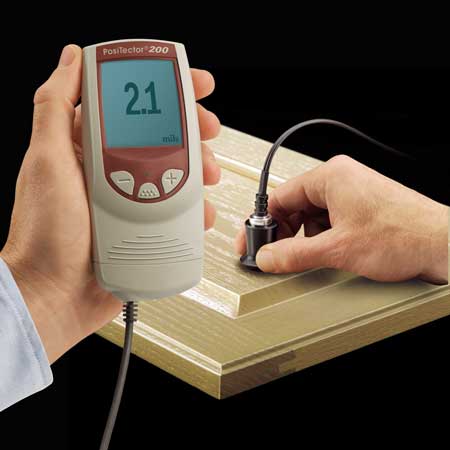

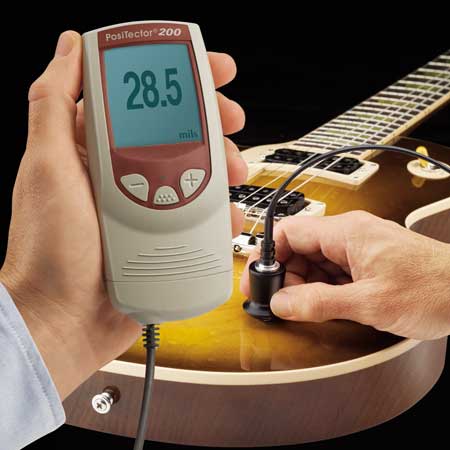

The PosiTector 200 Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastics, composites and more. Advanced models measure up to 3 individual layer thicknesses in a multi-layer system and features a graphic readout for detailed analysis of the coating system.
Standard models measure the total coating thickness
Advanced models measure total coating thickness or up to 3 individual layer thicknesses in a multi-layer system. Also features graphic readout for detailed analysis of the coating system. |
 Includes NIST Traceable Calibration Certificate | | USB/Serial/IR Ports for downloading to a PC, printer or data collector | | Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X | | Thick impact-resistant Lexan display | | Bi-color indicator light | | 2 Year Warranty |
| | Shock-absorbing, protective rubber holster | | Quality high-flex cable and strain relief | | Comfortable ergonomic finger grip reduces operator fatigue | | Plastic-tipped probe will not scratch surface | | Made in the USA |
|
 |

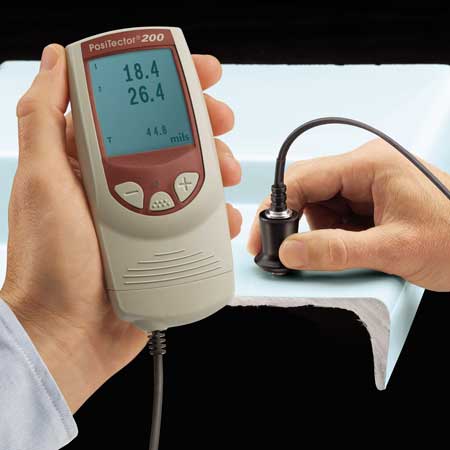

 Advanced models toggle between graphic readout and statistical data displays
PosiTector
200 |
Probe Model: |
B |
C |
|
Range* |
13
- 1000 um
0.5
-40 mils |
5 - 3800 um
2
- 150 mils |
Typical
Applications: |
Polymer coatings on
wood, plastic,
composites, etc. |

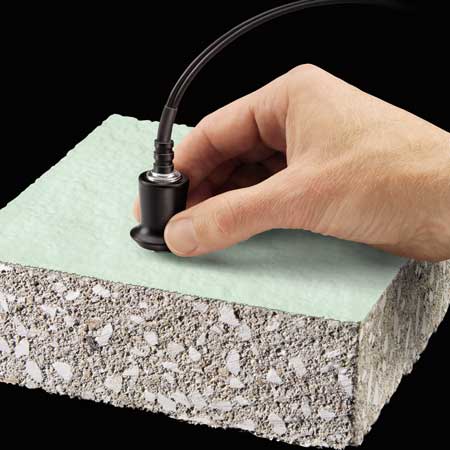

Thicker coatings
on concrete,
fiberglass, etc. |
Accuracy: |
±
(2 microns + 3% of reading)
± (0.1 mils + 3% of reading) |
*Range
limits apply to polymer coatings only. |
|
Standard |
Advanced |
Measures Total Thickness of a coating
system |
Yes |
Yes |
| Graphic readout for
detailed analysis of the coating system |
-- |
Yes |
| Measures Individual Layer thicknesses
in a multi-layer coating system |
-- |
Yes |
| No Calibration required
for most applications |
Yes |
Yes |
| One handed menu navigation |
Yes |
Yes |
| Mils/Microns switchable |
Yes |
Yes |
| Adjustable to a known thickness |
Yes |
Yes |
| Thick impact resistant Lexan® display |
Yes |
Yes |
| Backlit display for dim or dark environments |
Yes |
Yes |
| Instantly calculate average, standard
deviation, min/max thickness and number of readings while
measuring |
Yes |
|
| Reading Storage Capacity |
10,000 in
up to 1000 groups |
Built in clock to date and time
stamp each stored measurement |
Yes |
Yes |
| Serial RS232 communication for downloading
readings as they are taken to a PC or Data Collector
(requires optional Serial
Output Cable) |
Yes |
Yes |
| PosiSoft downloading and charting
software (includes USB cable) |
Optional |
Optional |
| Built-in IR port for printing to
an optional portable
printer |
Yes |
Yes |
| Protective rubber holster with belt
clip |
Yes |
Yes |
| Nylon carry case with shoulder strap |
Yes |
Yes |
| Certificate of Calibration showing
traceability to NIST |
Yes |
Yes |
| Two (2) Year Warranty on both gage
body and probe |
Yes |
Yes |
|
| | | | All gauges come complete with probe, precision plastic shims, protective rubber holster with belt clip, couplant, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty. |
 |
| PosiTector 200 Model |
B/Std |
B/Adv |
C/Std |
C/Adv |
| Measures Total Thickness |
Yes |
Yes |
Yes |
Yes |
| Measures Individual
Layers |
No |
Yes |
No |
Yes |
| Graphical Display |
No |
Yes |
No |
Yes |
| Typical Applications |
Polymer
coatings on
wood, plastic, composites, etc. |
Thicker
coatings
on concrete, fiberglass, etc. |
| Range* |
13
- 1000 microns
0.5 - 40 mils |
50 - 3800
microns
2 - 150 mils |
| Accuracy |
± (2
microns + 3% of reading)
± (0.1 mils + 3% of reading) |
Minimum Individual
Layer Thickness** |
------- |
13 microns
0.5 mils |
------- |
50 microns
2 mils |
| *Range limits apply to polymer coatings only. **For multiple layer applications only. Dependent on material being measured. |
|
|
|
