MMX-6DL
Data Logging Through Paint Ultrasonic Wall Thickness Gauge |
Measuring Range in Steel
Pulse-Echo Mode
(Pit & Flaw Detection) measures from 0.025 to 19.999 inches (0.63 to 500 millimeters).
Echo-Echo Mode (Through Paint & Coatings) measures from 0.1 to 1 inch (2.54 to 25.4 millimeters).

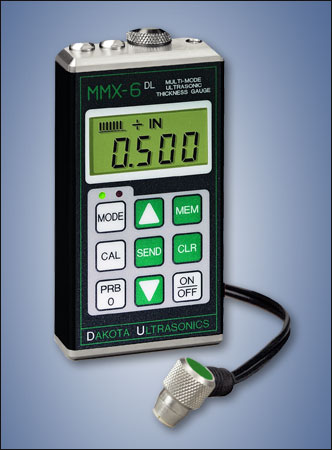

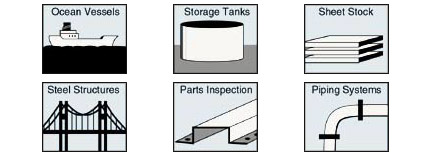

 The new CHECK-LINE MMX-6DL Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The MMX-6DL can be used in a Single Thickness Reading mode or in a Scan mode, where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The MMX-6DL incorporates a built-in memory for 1000 data points that can be separated into 10 separate "batches." The stored data can be downloaded to a serial printer or a personal computer. A Windows compatible data transfer program is supplied at no additional cost.
 The MMX-6DL probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions. |
 Ability to measure through paint and eliminate coatings | | Resolution of 0.001 inch (0.01 mm) | | Large, backlit LCD display retains last reading | | Simple operator controls virtually eliminate training | | RS-232C Serial output for downloading stored data to a printer or computer | | Memory for 1000 data points in up to 10 batches |
| | Special-purpose probes are offered for a variety of applications | | Switch-selected units for inches or mm | | For underwater surveying, probe cable lengths up to 50 feet are optionally | | CE Certified | | Includes NIST-Traceable Calibration Certificate |
|
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
NA |
| Minimum Substrate Thickness - NFe |
NA |
| | | | The MMX-6DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
|
Range
|
Pulse-Echo Mode(Pit & Flaw Detection) measures from 0.025 to 6.000 (up to 19.999 inches if uncoated using T-102-2000 probe)
0.63 to 150 millimeters (up to 500 mm if uncoated using T-102-2000 probe).
|
|
Resolution
|
.001" (0.01 mm)
|
|
Display
|
4½ - Digit, 0.5" Backlit LCD
|
|
Velocity Range
|
0.0492 to .3937 in./µs. (1250 to 10,000 meters/second)
|
|
Probe
|
5 MHz, 0.25" Diameter (6.35 mm)
|
|
Probe Wearface
|
PEEK (Polyethlethylketone)
|
|
Cable
|
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
|
|
Temp. Limits
|
Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available
|
|
Serial Output
|
RS-232C (8, N, 1, user-set baud rate)
|
|
Battery Type
|
Two AA batteries
|
|
Battery Life
|
200 hours
|
|
Weight
|
7 ounces (196 g)
|
|
Size
|
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
|
|
Accessories Included
|
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
|
|
Warranty
|
Gauge: 5 Years
Probes: 90 Days
|
