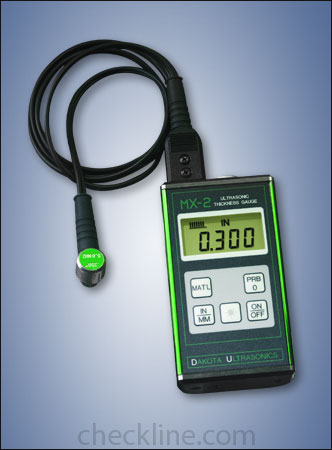

MX-2
Ultrasonic Wall Thickness Gauge |
 The MX-2 is ideal for the person that tests a few different materials regularly. The MX-2 contains 8 velocities of common materials and two velocities that the user can set using a simple sofware program.
The tool's backlit display is easy to read, even in dim light, and the unit operates for up to 200 hours on a single set of batteries.
The MX-2 comes complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty.
Velocity Settings
The MX-2 has 8 set velocities and 2 that are custom to the user's applications. The set velocities are as follows:
- 1. Steel4340-(.233)
- 2. Stainless Steel 303-( .223 )
- 3. Aluminum 2024 - ( .251 )
- 4. Cast Iron-(.179 )
- 5. Plexiglass-(.106 )
- 6. PVC - (.094)
- 7. Polystyrene(.092)
- 8. Polyurethane-(.070 )
- 9. Custom
- 10. Custom
|
 Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions. | | Measurements displayed in inches, inches/microsecond, millimeters, and meters/second. | | Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units. |
| | Four readings per second for single point measurements. | | 8 pre-set velocities and 2 custom velocities | | Ability to change between velocities without the use of computer software |
|
| | | | The MX-2 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
|
NIST-Traceable Steel Test Block
3 Sizes Available |  |
Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | Click image for more info | | ___________________________________________ |
|
Uncertified Steel Test Block
For Ultrasonic Gauges |  |
For convenient confirmation of thickness gauge calibration | | Click image for more info | | ___________________________________________ |
|
TICC-M
Protective Holder for Ultrasonic Gauges |  |
Constructed from heavy duty Cordura Nylon | | Click image for more info | | ___________________________________________ |
|
CF12
Coupling Fluid |  |
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle | | Click image for more info | | ___________________________________________ |
|
TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  |
| | Click image for more info | | ___________________________________________ |
|
V-Block
Transducer Holder |  |
The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | Click image for more info | | ___________________________________________ |
|
DataComm
Software |  |
Free data acquisition software | | Click image for more info
|
| Measuring Range |
0.025 to 19.999 inches
0.63 to 199.99 millimeters |
| Resolution |
0.001 inch
0.01 millimeter |
| Velocity Range |
.0492 to .3937 in/µs
1250 to 10,000 meters/sec |
| Dimensions |
2.5 W x 4.75 H x 1.25 D inches |
| Range in Steel |
0.025-6.00" (0.60-150.0 mm) |
| Resolution |
.001" (0.01 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two 1.5V alkaline or 1.2V NiCad AA cells. |
| Battery Life |
Typically operates for 200 hours on alkaline and 130 hours on NiCad. |
| Weight |
10 ounces (283 g) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
