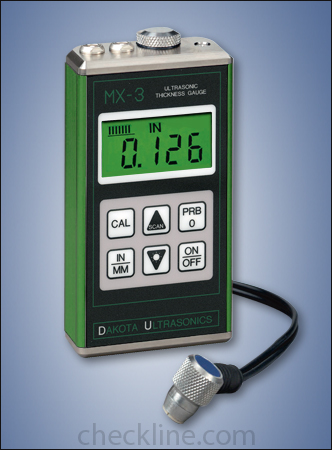

MX-3
Ultrasonic Wall Thickness Gauge |
 Measuring Range in Steel
0.040 - 6.00 inches
1.00 - 150.0 mm

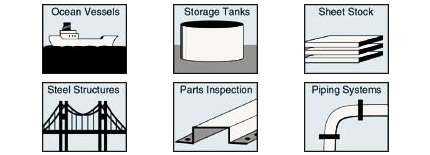

The new Dakota Ultrasonics MX-3 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The Dakota Ultrasonics MX-3 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
 The Dakota Ultrasonics MX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions. |
 Resolution of 0.001 inch (0.01 mm) | | Large, backlit LCD display retains last reading | | Simple operator controls virtually eliminate training | | Special-purpose probes are offered for a variety of applications |
| | Switch-selected units for inches or mm | | For underwater surveying, probe cable lengths up to 50 feet are optionally | | CE Certified | | Includes NIST Calibration Certificate |
|
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  | Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | | Click image for more info
|
___________________________________________ |
| | | Uncertified Steel Test Block
For Ultrasonic Gauges |  | For convenient confirmation of thickness gauge calibration | | | Click image for more info
|
___________________________________________ |
| | | TICC-M
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Built-in belt loop | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured | | | Click image for more info
|
___________________________________________ |
| | | TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  | 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors. | | | Click image for more info
|
___________________________________________ |
| | | V-Block
Transducer Holder |  | The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | | Click image for more info
|
|
| | | | The Dakota Ultrasonics MX-3 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
| Range in Steel |
0.040-6.00" (1.00-150.0 mm) |
| Resolution |
.001" (0.01 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Velocity Range |
6,500-33,000 ft./sec (2000-10,000 m/sec.) |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
7 ounces (196 g) |
| Size |
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
