MX-5DL
Data-Logging Ultrasonic Coating & Wall Thickness Gauge |
 Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 199.0 mm

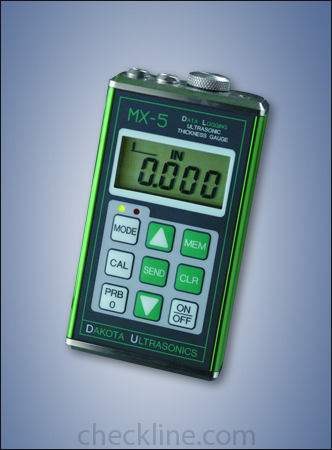

The MX-5 DL is a simple to operate Ultrasonic Thickness Gauge with an internal data logger. It offers features that make your job easier. An Alarm mode, Differential mode, high speed scanning, and data send are the main features of the MX-5 DL.
 The MX-5 DL will automatically log your readings in numeric order ( 1 to 1000 readings ). The gauge comes as a complete kit, ready to use, and is backed by our 5 year limited warranty. |
 Resolution of 0.001 inch (0.01 mm) | | Large, backlit LCD display retains last reading | | Simple operator controls virtually eliminate training | | Special-purpose probes are offered for a variety of applications | | Switch-selected units for inches or mm | | CE Certified |
| | For underwater surveying, probe cable lengths up to 50 feet are optionally | | Differential Mode | | Alarm Mode | | RS232 output sends thickness readings to a printer, computer or other external storage device. | | Automatic numeric Data Logging system 1 to 1000 readings. | | Includes NIST Calibration Certificate |
|
| | | NIST-Traceable Steel Test Block
3 Sizes Available |  | Precision Machined and Finished Includes NIST-Traceable Report and Test Data Includes Wooden Storage Box | | | Click image for more info
|
___________________________________________ |
| | | TICC-M
Protective Holder for Ultrasonic Gauges |  | Constructed from heavy duty Cordura Nylon Built-in belt loop | | | Click image for more info
|
___________________________________________ |
| | | CF12
Coupling Fluid |  | Used to create an ultrasonic coupling between the probe and material to be measured | | | Click image for more info
|
___________________________________________ |
| | | TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly |  | 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors. | | | Click image for more info
|
___________________________________________ |
| | | V-Block
Transducer Holder |  | The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas. | | | Click image for more info
|
___________________________________________ |
| | | DataComm
Software |  | Free data acquisition software | | | Click image for more info
|
|
| | | | The MX-5DL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case. |
 |
 |
Minimum Radius
for Convex Surfaces |
0.350" (8.89 mm) |
| Minimum Radius
for Concave Surfaces |
3" (76.2 mm) |
 |
Minimum Headroom |
1" (25.0 mm) |
 |
Minimum Sample
Diameter |
0.150" (3.8 mm) |
 |
Minimum Substrate Thickness - F |
na |
| Minimum Substrate Thickness - NFe |
na |
| Range in Steel |
0.040-8.00" (1.00-199.9 mm) |
| Resolution |
.001" (0.01 mm) |
| Display |
4½ - Digit, 0.5" Backlit LCD |
| Velocity Range |
6,500-33,000 ft./sec (2000-10,000 m/sec.) |
| Probe |
1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable |
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits |
Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. |
| Battery Type |
Two AA batteries |
| Battery Life |
200 hours |
| Weight |
7 ounces (196 g) |
| Size |
2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) |
| Accessories Included |
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty |
Gauge: 5 Years
Probes: 90 Days |
|
|
