JD50R Series
Digital Running Diameter & Thickness Gauges |
Measuring Range: 0 - 10 mm / 0 - 0.4 inch
Resolution: 0.01 mm (0.001") or 0.001 mm (0.0001")
Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foils, ribbon, narrow fabrics, etc. - without stopping the manufacturing process.
 |
 Easy to read digital display | | Precision steel rollers for wire speeds up to 500 ft/min | | Lightweight and compact | | Available with or without roller flanges |
| | Metric and inch units, selectable | | RS 232 output for data collection | | Traceable certificate optionally available |
|
|
J-CC
Connecting Cable |  |
| | Click image for more info | | ___________________________________________ |
|
TSTG
Table Stand for Thickness Gauge |  |
Table stand for thickness gauges | | Click image for more info
|
|
Measuring Range
|
Resolution
|
|
| Model |
Metric |
Inch |
Metric |
Inch |
Lower
Roller
Flanges |
| JD50R |
0 - 10 mm |
0 - 0.4" |
0.01 mm |
0.001" |
Yes |
| JD50RO |
0 - 10 mm |
0 - 0.4" |
0.01 mm |
0.001" |
No |
| JD50RS |
0 - 10 mm |
0 - 0.4" |
0.001 mm |
0.0001" |
Yes |
| JD50RSO |
0 - 10 mm |
0 - 0.4" |
0.001 mm |
0.0001" |
No |
| Jaw depth |
2 inches (50 mm) |
| Spring force |
3.6 ozf (1 Newton) |
| Scale diameter |
2.25 inches (50 mm) |
| Roller width |
0.34 inches (8.70mm) |
| Maximum line speed |
164 yd/min (150 m/min) |

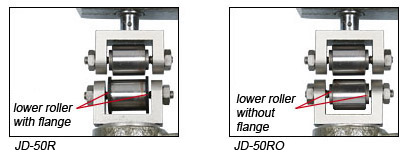

Note: For ribbon and narrow fabric material, use models without flanges.
|
|
|
