CG

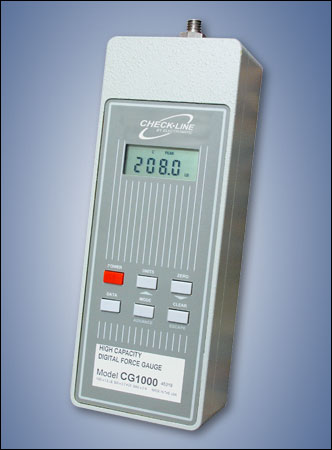

High Capacity Digital Force Gauge |
No longer available, replaced by M5-1000, click for more info
The Series CG High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments.  Use the CG with a TSF Test Stand to create a complete spring testing solution. |
 RS-232, Mitutoyo and analog outputs | | Automatic timed output on RS-232 | | Averaging mode for average readings over time | | GCL-Gauge Control Language for full computer control | | Dual set points with outputs | | External trigger for contact or switch testing and data capture |
| | Peak memory for tensile and compressive forces | | General purpose I/O for external device control
| | Programmable analog and digital filters | | Selectable units of measurement | | Battery or AC operation | | 3 Year Warranty |
|
| Model |
Capacity | Resolution |
| CG-500 |
500 lb
250 Kg
2500 N | 0.2 lb
0.1 Kg
1 N |
| CG-1000 |
1000 lb
500 Kg
5000 N | 0.5 lb
0.2 Kg
2 N | | |
|
TSC1000
High Capacity Test Stand |  |
Precision Acme screw and nut | | Click image for more info | | ___________________________________________ |
|
TSF
High Capacity Test Stand |  |
Smooth hand wheel operation Available in vertical and horizontal orientations. | | Click image for more info | | ___________________________________________ |
|
MESURgauge
Mesurgauge Load & Travel Analysis Software |  |
Windows 7 Compatible | | Click image for more info | | ___________________________________________ |
|
DP-1VR
Mitutoyo SPC statistical processor/printer |  |
Portable printer for use with force and torque gauges | | Click image for more info
|
| Accuracy |
± 0.2% of full scale ±1 digit |
| Sampling rate |
65 readings/sec |
| Overload Protection |
150% |
| Battery life |
8-10 hours per charge |
| Weight |
1.8 lbs (0.8 kg) |
| Warranty |
3 year |
|
|
Features
