125-14
Precision Tension Meter

6 Ranges
0 - 5g up to 0 - 40g

The Series 125-14 Tension Meters are for use on monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm Ø, woven tapes, belts and magnetic tapes. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

High overload protection and optional waterproof design makes this model ideal for all laboratory & production.


line
reddot Features
line
bluedot Excellent long-term stability for highly reproducible measuring results
bluedot 3 ball-bearing aluminium rollers with V-groove, root diameter 16mm
bluedot Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds
bluedot Smallest possible deflection angle (15°) for minimum interaction with the product being measured
bluedot Interchangeable guide components

line

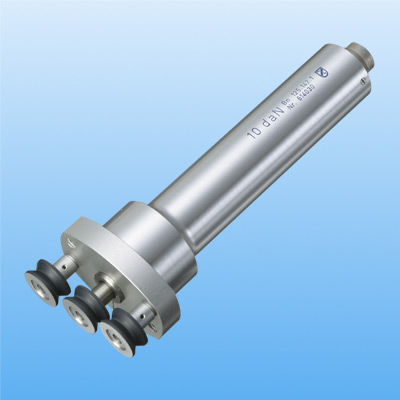

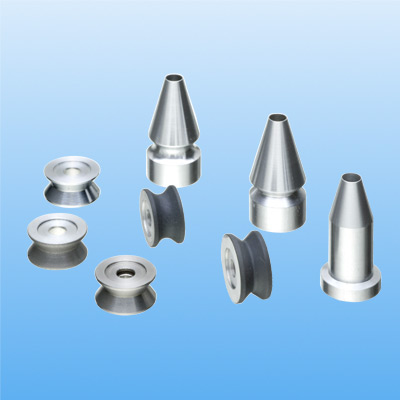

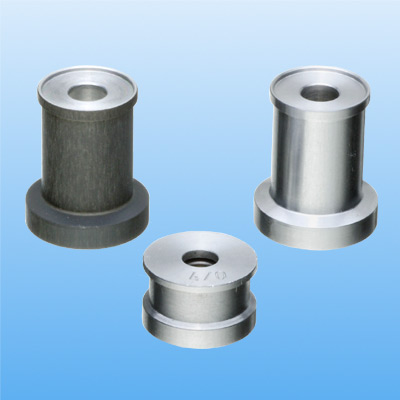

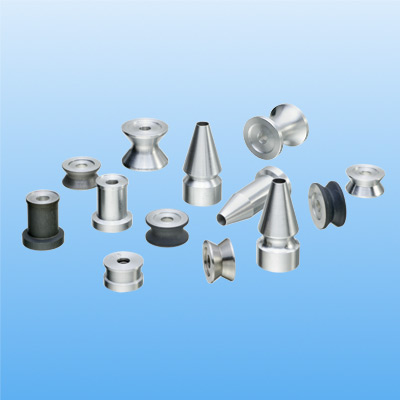

reddot Photo Gallery - click any photo to enlarge
line




line
reddot Related Products
line

D-485
Digital Tension Indicator with Built-In Amplifier		related

bluedot Automatic zero setting

bluedot "Peak" function retains maximum reading on display

 Click image for more info
___________________________________________


TM-353
Analog Tension Indicator with Built-In Amplifier		related

bluedot  Provides 0-1 VDC analog output for recording purposes

 Click image for more info
___________________________________________


HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors		related

bluedot Real time display of measured values graphically and digitally, indicating the actual value in tension units

bluedot Export data in ASCII format

 Click image for more info
