125-S-HDI

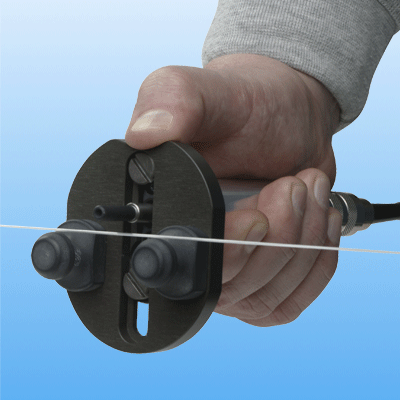

Hand-Held Tension Sensor

Designed for measurement of high denier yarns for operating tensions up to 5Kg and for filament speeds up to 3000 m/min and higher.

Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed. Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins.

Connect sensor to our portable, Tension Indicators:
TM-353 Analog Tension Indicator
D-485 Digital Tension Indicator


line
reddot Features
line
bluedot Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
bluedot Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
bluedot Small angle of contact minimizes twisting interference
bluedot Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed
bluedot Lightweight and compact permits use in applications where access space is limited

line
reddot Tension Ranges
line
Model Range
125/S-500-HDI 500 g/cN
125/S-1K-HDI 1000 g/cN
125/S-2K-HDI 2000 g/cN
125/S-3K-HDI 3000 g/cN
125/S-4K-HDI 4000 g/cN
125/S-5K-HDI 5000 g/cN

line
reddot Related Products
line

TM-353
Analog Tension Indicator with Built-In Amplifier
related

bluedot  Provides 0-1 VDC analog output for recording purposes

 Click image for more info
___________________________________________


D-485
Digital Tension Indicator with Built-In Amplifier
related

bluedot Automatic zero setting

bluedot "Peak" function retains maximum reading on display

 Click image for more info
___________________________________________


125-12
Limited Access Tension Meter
related

bluedot Small angle of contact minimizes twisting interference

bluedot Easy to load thread

 Click image for more info

line
reddot Specifications
line
Measuring Principle Capacitive Sensing
Accuracy ±1.0% or better
Material Deflection 15 Degrees
Roller Material Plasma Coated Steel
Dimensions 100mm x 25mm diameter
Weight 100 grams
Calibration Certificate Optional
