137-4

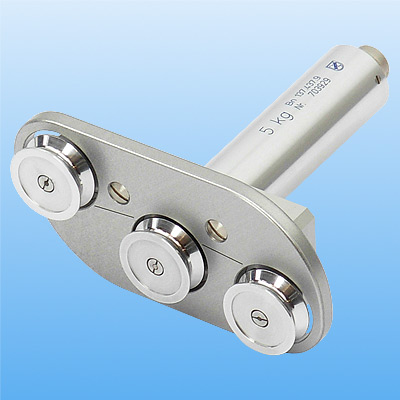

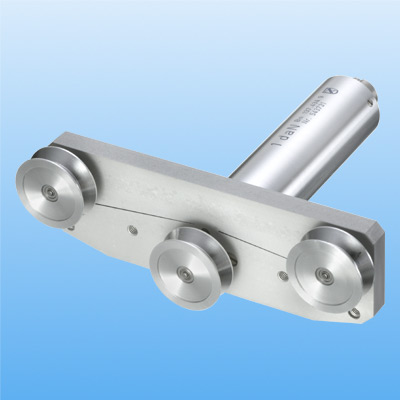

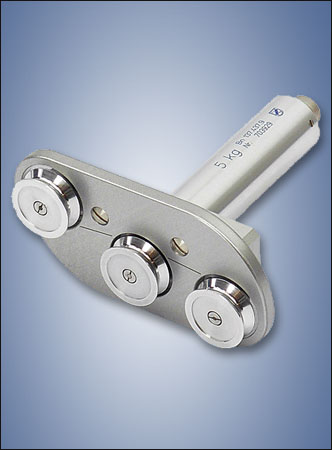

Tension sensor |
6 Ranges
0 - 100 g up to 0 - 5 kg
The design of this measuring head was selected to satisfy the special needs of the optical fibers industry. In the field of research and quality control its applications range from the crucible to re-reeling stations, from the extrusion process through cable jacketing and twisting machines, etc. |

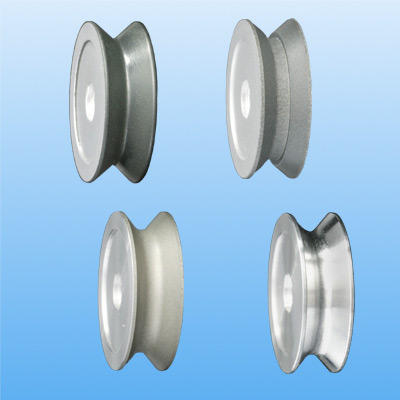

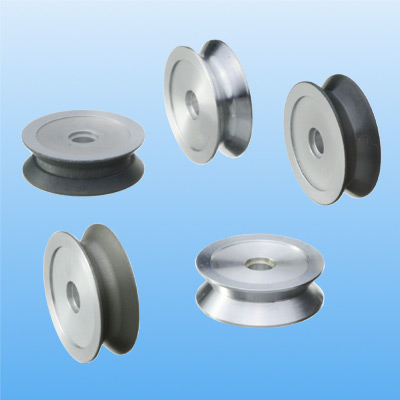

 for measurement of optical fibres, sensitive wires up to 3.5mm Ø | | easy-running pulleys with precision bearings; with polished, large diameter
contact surface | | gentle on the material; easy to thread even while the process is running | | effective overload protection means high availability for customer operations |
| | very small angle of contact, only 5° | | fiber is not diverted from its path | | high precision and excellent long-term stability |
|
|
D-485
Digital Tension Indicator with Built-In Amplifier |  |
Automatic zero setting "Peak" function retains maximum reading on display | | Click image for more info | | ___________________________________________ |
|
TM-353
Analog Tension Indicator with Built-In Amplifier |  |
Provides 0-1 VDC analog output for recording purposes | | Click image for more info | | ___________________________________________ |
|
HCC-Easy
Data Transfer & Analysis Program For Honigmann Tension Sensors |  |
Real time display of measured values graphically and digitally, indicating the actual value in tension units Export data in ASCII format | | Click image for more info
|
|
|
Features
