The TSTM Motorized Torque Measurement Test Stand is ideal for a wide variety of torque testing applications up to 100 lbin, including closure torque testing, fastener torque testing, and more. Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured for a variety of torque sensors and gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

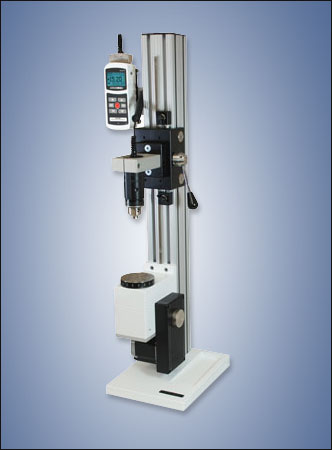

 Images show TSTM with Optional Equipment.
The TSTM is a motorized test stand only. In order to measure torque you will need to add a torque sensor, display and appropriate test fixtures.
For cap torque testing applications we offer a complete system including torque sensor, display and appropriate test fixtures; refer to this link .....CAP-TSTM. |
 |
 Maximum load: 100 lbin (11.3 Nm) | | Speed range: 0.3-8.6 RPM (4-52°/s) |
| | Speed accuracy: ±5% of setting | | No speed variation with load |
|
|
BGI
Remote Sensor Force / Torque Gauge |  |
Fully interchangeable force and torque BGI force/torque sensors with "personality" modules Unlimited number of sensors possible due to unique design RS-232, Mitutoyo and analog outputs | | Click image for more info | | ___________________________________________ |
|
TST001
Digital Angle Indicator |  |
Displays cw or ccw angle in .01º resolution Accurate to ±0.7° | | Click image for more info | | ___________________________________________ |
|
STJ
Universal Torque Sensor |  |
Measures bi-directional torque | | Click image for more info | | ___________________________________________ |
|
G1053
Cap Grip |  |
For Cap diameters of 0.65 - 1.55 in [16.5 - 39 mm] | | Click image for more info | | ___________________________________________ |
|
G1023
Bottle / Round Sample Grip |  |
| | Click image for more info | | ___________________________________________ |
|
G1022
Jacobs Chuck Grips For TSTM |  |
| | Click image for more info
|
|
Maximum Load
|
100 lbin
|
|
Speed Range
|
0.3-8.6 RPM (4-52°/s)
|
|
Speed Accuracy
|
±5%
|
|
Maximum Angular Travel
|
No limit
|
|
Throat
|
4.10" (104 mm)
|
|
Manual Adjustment
|
12º/knob rev
|
|
Maximum Silder Travel
|
15.5" (394 mm)
|
|
Slider Travel Rate
|
1.047" (26.6 mm) / level rev
|
Notes
Column extension $125.00 base + $15.00 per inch
The TSTM / TSTMH now includes the AC1004 adjustable gauge mounting plate (for BGI or MGT).
The TSTM / TSTMH is supplied with a wrench set. |
|
|
TSTMH - Horizontal Model
