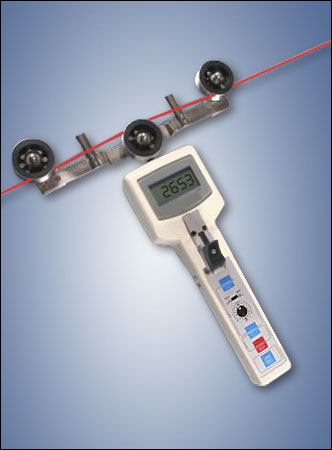

DTLB - DTLX
Digital Tension Meter |
DTLB Standard Model
DTLX Data-Logging Model
3 Ranges Up To 10 Kg
For material diameters up to 8mm (5/16")
DTLB and DTLX models feature large diameter rollers with wide roller spacing to minimize bending when measuring tensions on rigid/stiff materials such as certain canles, buffer tubes, central strength members, plastic tubes, etc.
DTLX Additional Features
- Built-in datalogging with RS232 and 0-1 VDC Analog output
- Memory capacity of 100 values plus min, max, peak, avg and standard deviation
- Optional TensionView software available for batch download or continuous real-time trending
|
 Large, V- or U-grooved guide rollers with 29.5 mm groove diameter, ball-bearing mounted | | Large bending radius assures gentle handling of the material being measured | | Special guides on the bracket assembly permit easy material acquisition |
| | A precision strain-gauge sensing system accurately measures the force on the middle sensing roller. | | High-Speed Measurement Captures Max, Min & Peak Tension Values |
|
| Model |
Range | Resolution | Meas. Head Width | Lever |
DTLB-2000
DTLX-2000 |
200-2000 g | 1 g | 185 mm | Optional |
DTLB-5000
DTLX-5000 |
400-5000 g | 1 g | 235 mm | Optional |
DTLB-10K-L
DTLX-10K-L |
1 - 10 Kg | 0.01 Kg | 235 mm | Included | | |
 NOTE Customer's sample required for calibration
NOTE DTLB-10K-L & DTLX-10K-L include lever in place of thumb piece. Lever is available as option on other ranges.
|
| |
| Roller Details |
Image |
Dimensions |
Standard
Max Speed: 4000 (m/min)
Material: hardened steel (R10006) |
 |
 |
Option - R1
Max Speed: 4000 (m/min)
Material: hardened steel (radius R5) |
|
 |
|
|
Tension View
Data Transfer & Analysis Program For The DTMX Tension Meter |  |
Displays, Records, Graphs & Prints data from DTMX Tension Meter Works with windows 95 & later Real-Time data-logging | | Click image for more info | | ___________________________________________ |
|
CS-DTMX
Serial Cable for DTMX |  |
The CS-DTMX connects your DTMX tension meter to a PC or printer. | | Click image for more info | | ___________________________________________ |
|
P-DTMX
Portable Printer for DTMX |  |
Small, portable and easy to use Prints statistical data from the DTMX Digital Tension Meter | | Click image for more info
|
| | | | The DTLB / DTLX is supplied as a complete kit including tension meter, four (4) AA batteries and instruction manual in rugged plastic carrying case. |
 |
|
*Accuracy
|
± 0.5% Full Scale, ± 1 digit
(10 - 90% of Full Scale)
± 3.0% Full Scale, ± 1 digit
(Remaining portion of range)
|
|
Measuring Frequency
|
Measuring Frequency
|
|
Deflection of Sensing Roller
|
0.2 mm (maximum)
|
|
Overload Capacity
|
200% of Full Scale
|
|
Display
|
4-Digit LCD, 12 mm high
|
|
Display Update Rate
|
0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
|
|
Standard Memory
|
Last, maximum, minimum and peak
|
|
Field Calibration Adjustment
|
± 7 steps, 1.5% per step
|
|
Battery Type
|
Four (4) 1.5 V AA (included)
|
|
Battery Life
|
20 hours, continuous use
|
|
Auto Power Off
|
After 2 minutes of non-use
|
|
Roller Material
|
hardened steel
|
|
Maximum Speed
|
4000 m/min
|
|
Housing Material
|
Die-cast Aluminum
|
|
Weight
|
1.43 lbs. (650 g)
|
|
Operating Temperature
|
32 to 132 °F (0 to 45 °C)
|
|
Warranty
|
One year
|
|
AC Adapter (optional)
|
6 VDC @ 300 mA, for continuos in-line use
|
|
DTLX
|
Additional Specifications
|
|
Memory Capacity
|
100 values plus maximum, minimum, average, peak, standard deviation and memory location
|
|
Memory Operation
|
Continuous Mode: Automatic storage of each displayed value until memory is full
On-Demand Mode: Displayed value is stored when STORE key is pressed
|
|
Serial Output
|
RS-232C (4800 baud, 8 bit word length, no parity, 2 stop bits)
|
|
Analog Output
|
0-1 VDC, proportional to tension range
|
|
|
