FTMB / FTMX
Digital Tension Meter |

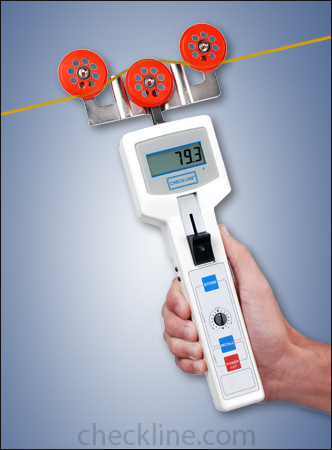

The FTMB is a special tension meter for sensitive materials as optical fibers, carbon fibers, technical fibers etc. It uses low-inertia 32 mm dia. rollers for fragile materials sensitive to bending over a small radius. Rollers are available in plastic or aluminum.
FTMX Additional Features
- Built-in datalogging with RS232 and 0-1 VDC Analog output
- Memory capacity of 100 values plus min, max, peak, avg and standard deviation
- Optional TensionView software available for batch download or continuous real-time trending
|
 Special guides on the bracket assembly permit easy material acquisition | | Filament guide and roller shifting mechanism ensure easy acquisition of the running material |
| | large, V-grooved guide rollers with 32 mm groove diameter, ball-bearing mounted |
|
| Model |
Range | Resolution | Measuring Head Width mm |
FTMB-200
FTMX-200 |
2.0-200 g | 0.1 g | 140 |
FTMB-500
FTMX-500 |
5.0-500 g | 0.1 g | 140 |
FTMB-1K
FTMX-1K |
50-1000 g | 1 g | 140 | | |
| Other units of measure available. |
| |
| Roller Details |
Image |
Dimensions |
Standard
Max Speed: 4000 (m/min)
Material: hardcoated aluminium (R12021) |
 |
 |
Option - Code T
Max Speed: 4000 (m/min)
Material: plastic red (PVC) |
|
|
|
|
Roller Guide
Available Rollers for Hand-Held Tension Meters |  |
| | Click image for more info | | ___________________________________________ |
|
Tension View
Data Transfer & Analysis Program For The DTMX Tension Meter |  |
Displays, Records, Graphs & Prints data from DTMX Tension Meter Works with windows 95 & later Real-Time data-logging | | Click image for more info | | ___________________________________________ |
|
CS-DTMX
Serial Cable for DTMX |  |
The CS-DTMX connects your DTMX tension meter to a PC or printer. | | Click image for more info | | ___________________________________________ |
|
P-DTMX
Portable Printer for DTMX |  |
Small, portable and easy to use Prints statistical data from the DTMX Digital Tension Meter | | Click image for more info
|
| | | | The FTMB complete kit includes the tension meter, four (4) AA batteries, needle nose pliers and operating instruction manual all supplied in a foam fitted carrying case. |
 |
|
Calibration
|
According to SCHMIDT factory procedure
|
|
Accuracy
|
From 10% up to 90% of tension range: ±0.5% full scale and ±1 digit remaining tension range and other calibration material: ± 3% full scale and ±1 digit
|
|
Overrange
|
Approx. 15% full scale, without accuracy guarantee
|
|
Overload protection
|
100% of tension range
|
|
Measuring principle
|
Strain gauge bridge
|
|
Measuring roller deflection
|
0.2 mm max.
|
|
Converter
|
12 bit A/D
|
|
Temperature Coefficient
|
Gain: less than ±0.01 % full scale/șC
Zero point: less than ±0.3 % full scale/șC
|
|
Display
|
LCD 4 digit, 12 mm high
|
|
Field adjustment
|
±7 steps in 1.5 % increment
|
|
Memory
|
MIN, MAX, PEAK and last value
|
|
Temperature range
|
10 - 45 șC
|
|
Air humidity
|
85 % relative humidity, max.
|
|
Housing Dimensions
|
235 x 76 x 45mm (LxWxH)
|
|
Additional specifications model for FTMX:
|
|
Expanded memory
|
Max. 100 readings, MAX, MIN, and PEAK as well as average values and standard deviation
|
|
Digital output signal
|
RS 232 C (4800, 8, N, 2)
|
|
Analog output signal
|
0 - 1 V DC (converter rate 16 ms)
|
|
Digimatic interface
|
Mitutoyo
|
|
|
|
