Home->Durometers->Asker Durometer

View Larger Image



Features
Photo Gallery



Asker Durometer
Conforms to Asker / JIS Specifications

Asker C, Asker CS, Asker F & Asker JA models available

The Asker C Type durometer is commonly used in checking the hardness of rubber material found in gym shoe soles. The Asker F Type durometer is primarily used to check the hardness of polystyrene foam. Analog and Digital Models available.


line
reddot Features
line
bluedot Available in analog and digital models
bluedot Precision construction
bluedot Custom made carrying case
bluedot 0-100 Point Scale

line

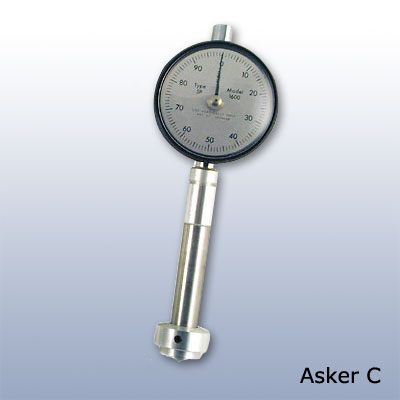

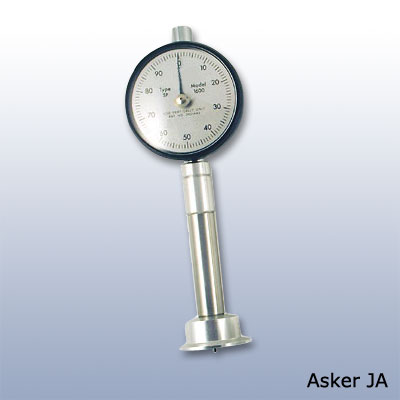

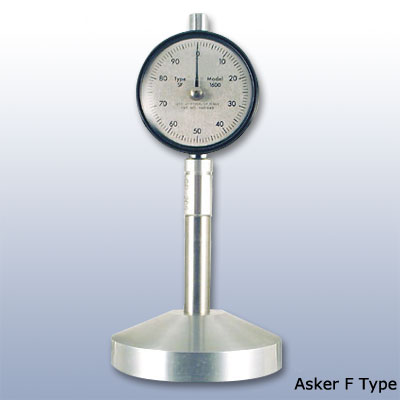

reddot Photo Gallery - click any photo to enlarge
line




line
reddot Buy Now
line

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
RX-1600-ASK-C $695.00 Asker C Analog Durometer1 Week Lead Time
RX-1700-ASK-C $815.00 Asker C Analog Durometer with Memory Pointer1 Week Lead Time
RX-DD-ASK-C $1,295.00 Asker C Digital Durometer1 Week Lead Time
RX-1600-ASK-F $895.00 Asker F Analog Durometer1 Week Lead Time
RX-1700-ASK-F $1,015.00 Asker F Analog Durometer with Memory Pointer1 Week Lead Time
RX-DD-ASK-F $1,495.00 Asker F Digital Durometer1 Week Lead Time
RX-1600-ASK-CS $895.00 Asker CS Analog Durometer1 Week Lead Time
RX-1700-ASK-CS $1,015.00 Asker CS Analog Durometer with memory1 Week Lead Time
RX-DD-ASK-CS $1,495.00 Asker CS Digital Durometer1 Week Lead Time
X-C2 $540.00 Asker C2 Duromoeter1 Week Lead Time
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item

line
reddot
line
Model Principal
Standards		 Indentor Design Spring Load [g] Size & Shape of Presser Foot [mm]
Height
[mm]		 Shape 0 Degree 100 Degree
JA

JIS K 6301
(Type A)
2.54
 35-Degree. Truncated Cone 0.79 55 855 44 x 18 (rectangular)
JC

JIS K 301
(type C)

 100 4,500
A

JIS K 6253
JIS K 7215
ASTM D 2240
ISO 7619
ISO 868
(Durometer Type-A)
2.50
 56 821
D

JIS K6253
JIS K 7215
ASTM D 2240
ISO 7619
ISO 868
(Durometer Type-D)

 30 Degree Cone Tip Radius 0.1 0 4,533
B

ASTM D 2240 (Durometer Type-B)

 56 821
ASKER C

SRIS 0101
(SRIS: Society of Rubber Ind., Japanese Standard)
2.54
 5.08 dia. Hemisphere 55 855
ASKER C2

ASKER C2

 55 455
ASKER CS

ASKER CS

10 dia. Circular Cylinder

100 4,500 50 dia. (Circular)
ASKER FP

ASKER FP

 15 dia. Circular Cylinder 100 200 50 x 37 (Oval)
ASKER F

ASKER F

 25.2 dia. Circular Cylinder 55 455 80 dia. (Circular)


Model F

  • Urethane Foam
  • Sponge
  • Non-woven Fabric

Model FP

  • Powder Puff





Exclusive type for foam materials, allowing measurement by placing the tester on the object of measurement. In addition to Model F, Model FP is available for powder puff.

Model C  &   Model C2

  • Soft Rubber
  • Urethane Rubber
  • Sponge
  • Wound threads (yarn package)
  • Rolled Films
  • Potter's Clay (Kaolin)



Model C is intended for hardness measurement of Soft Rubber, sponge, foamed elastomers, wound threads(yarn package), rolled films, potter's clay(kaolin) and other such soft materials.
For even softer materials, Model C2 is available.

Model CS

  • Polystyrene Foam



This features larger indentor and a more strong spring compared to Model C, thereby making it more suitable for polystyrene foam.

Model A

  • Rubber in general
  • Softer plastics



Has been used for wide applications since being standardized in the ISO.




  • Rubber in general
  • Softer plastics



A hardness tester which conforms with the Japanese Industrial Standards JIS K 6301. One of the most popular types in Japan, but has recently been gradually replaced with the ISO-specified Type A.

Model JAL

  • Rubber in general (Specially for measurement of recessed surfaces)



Especially useful for recessed and/or smaller measurement areas. In addition to the standard Model JAL, long presser foot type are available for another Model applications.

Model B

  • Semi-rigid Rubber
  • Unglazed pottery clay



It uses the same spring load used in Model A. It adopts a conical indentor similar to that of Model D, so as to be applicable to harder measuring objects than can be measured by Model A. It is useful for hardness measurement of unglazed pottery clay and ceramics in green condition.

Model JC

  • Semi-rigid Rubber



Model JC has those hardness testers described in JIS K 6301 as 'suitable for samples found to have a hardness value above 70 according to Model A'. It features higher resolution for hardness measurement of hard rubber.

Model D

  • Hard Rubber
  • Plastics



Similar to Model A, this model is defined as 'Durometer Type D' as described in various domestic and international standards. It is in widespread use for hardness measurement of plastics and hard rubber.





 ELECTROMATIC Equipment Co., Inc. 600 Oakland Ave Cedarhurst, NY 11516 - USA TEL (800) 645-4330 (516) 295-4300 FAX (516) 295-4399
