Shore Durometer |
Durometer according ISO 7619-1 for determining the Shore surface hardness of foams, steering wheels and inner linings of motor vehicles with hardness < 20 Shore A
 |
 The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators | | Working face 44.5 mm Ø | | Application range < 20 Shore A units |

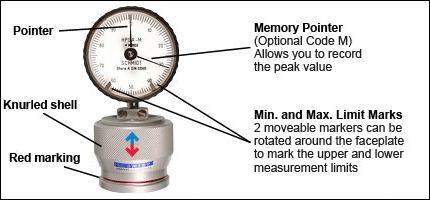

| | Flat bottom prevent tilting and improves the measuring accuracy | | Adjustable Min./Max. indicator marks to highlight working range of the hardness tester | | High repeatability |
|

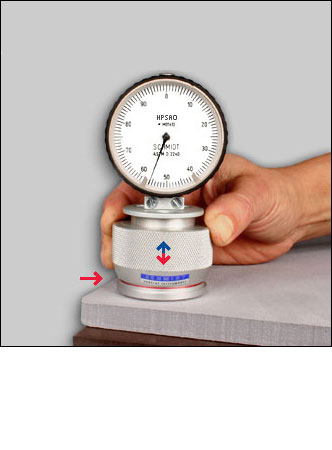

For measuring the hardness, the spring-loaded outer ring of the housing is pressed downwards until the edge of the ring meets the colored marking on the housing. This ensures a constant pressure and prevents measuring errors.
General:
The principle used to measure shore hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration is converted to hardness reading on a scale with 100 shore units.
As the depth of indentation is max. 2.5 mm the test material has to have a minimum thickness of 6 mm. If thickness is less stack some samples til you reach the required thickness.
 |
|
PTS-HP
Precision Test Stand for HP Durometers |  |
Spring loaded lever for fast & precise travel 11.5" High Shaft allows you measure a wide range of different sized objects | | Click image for more info
|
| | | | Hardness tester with carrying case, Certificate of Compliance with the
order 2.1 according EN 10204 free of charge, operating instructions |
 |
|
Indentor
|
Ball, 5 mm diameter (R=2.5mm)
|
|
Depth of indentation
|
0 - 2.5 mm
|
|
Typical applications
|
Foams, steering wheels and inner linings of motor vehicles
|
|
Accuracy
|
± 1 hardness unit
|
|
Application range
|
< 20 Shore A
|
|
Standard
|
ISO 7619-1
|
|
Measuring spring force
|
0.55 - 8.065 N
|
|
Test pressure*
|
Approx. 12.5 N
|
|
Scale diameter
|
54 mm
|
|
Display range
|
0 - 100 Shore AO units
|
|
Working face
|
44.5 mm Ø = 15.5 cm²
|
|
Base plate
|
44.5 mm Ø
|
|
Weight, net (gross)
|
Approx. 300 g (500 g)
|
|

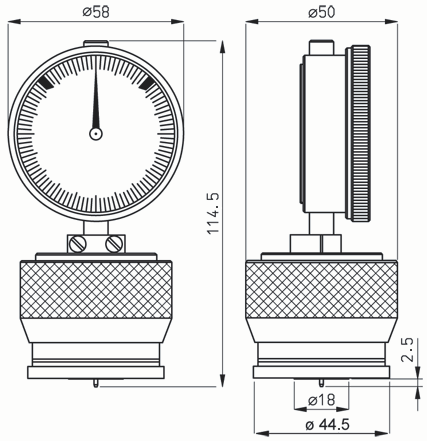

Dimensions
|
50 x 60 x 110 mm (LxWxH)
|
| * Spring load of outer ring to create constant pressure |
|
|
