DX2F
Limited Access Tension Meter |
Long, flat fingers and miniature V-grooved rollers are used in applications where there is limited access space or where the running filaments are close together.
 Measuring Head Dimensions
Head Width (X): 38 mm
Head Length (Y): 47 mm |
 22 mm distance between outer rollers permits a narrow access "window" of only 1/2" x 1 - 1/2". | | Rollers are rated for speeds up to 900 m/min. or, optionally, up to 2000 m/min (K). |
| | Turned-up outer finger edges guide the running filament into the roller grooves, eliminating snags behind the rollers. |
|
| Model |
Range |
| DX2F-3 |
3-30 grams |
| DX2F-5 |
5-50 grams |
| DX2F-12 |
10-120 grams |
| DX2F-20 |
10-200 grams |
| DX2F-30 |
20-300 grams |
| DX2F-40 |
10-400 grams |
| DX2F-80 |
100-800 grams |
| DX2F-SP |
50-1000 grams |
| DX2F-EX |
100-1000 grams |
| DX2F-200 |
200-2000 grams | | |

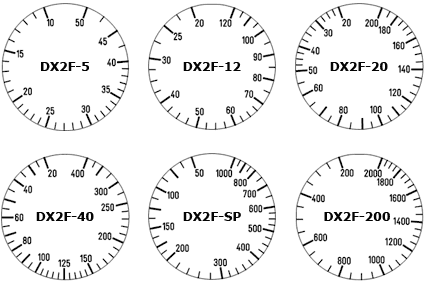

| *Note: Can be calibrated for cN units, add sufix "-CN" to end of part number DX2F Dial Faces
 *Note: not all scales are shown |
| |
|
Accuracy
|
± 1% of full scale or
± 1 graduation mark on scale
|
|
Diameter of Scale
|
41 mm
|
|
Maximum Speed
|
6000 m/min
|
|
Roller Material
|
Hard-coated aluminum (standard)
Hardened steel (ST)
Chromed Steel (w)
Plastic (PL)
|
|
Housing Material
|
Die-cast aluminum
|
|
Dimensions
|
225 x 90 x 44 mm
(8.6" x 3.5" x 1.7")
|
|
|
