DX2P
Limited Access Tension Meter with Ceramic Pins |
The DX2P features ceramics pins for measurings filaments moving at high speeds. It's long, flat fingers allow use in applications where there is limited access space or where the running filaments are close together.
 Measuring Head Dimensions
Head Width (X): 27 mm
Head Length (Y): 46 mm |
 Dual flanged Non-rotating ceramic pins permit line speeds up to 6000 m/min. | | 27 mm measuring head with outer rollers permits a narrow access "window" |
| | The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment | | Non-rotating ceramic pins permit line speeds up to max. 6000 m/min. |
|
| Model |
Range |
| DX2P-50 |
10 - 50 grams |
| DX2P-120 |
20 - 120 grams |
| DX2P-200 |
20 - 200 grams | | |

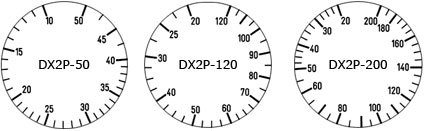

DX2P Dial Faces
 |
| |
| Order Code |
Line Speed
 ...m/min |
Pin Material |
| Standard |
6000 | Oxide ceramic Ø 5.2 mm |
| Order Code |
Line Speed
 ...m/min |
Pin Material |
| R50012 |
6000 | Oxide ceramic |
|
| | | | The DX2P Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case. |
 |
| Accuracy |
± 1% of full scale or
± 1 graduation mark on scale |
| Diameter of Scale |
41 mm |
| Maximum Speed |
6000 m/min |
| Roller Material |
Oxide ceramic Ø 5.2 mm |
| Housing Material |
Die-cast aluminum |
| Dimensions |
225 x 90 x 44 mm
(8.6" x 3.5" x 1.7") |
|
|
