ETP
Torque Analyzer

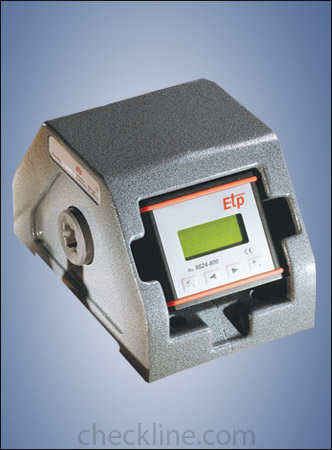

The ETP Electronic torque analyzer features a built in transducer for bi-directional test and calibration of torque wrenches.

Can be mounted for horizontal or vertical operation.

Robust aluminum housing with a detachable large LC graphic operating display.

Detachable operating display slips into stand (included) and can be positioned or mounted so the operator easily reads the display.

Detachable operating display slips into stand (included) and can be positioned or mounted so the operator easily reads the display.



 Features

bluedot Selection of four Operation modes: (Track, Peak, 1st Peak & Final Peak)
bluedot Three units of torque measurement available: (lbf.in, lbf.ft, N.m)
bluedot  RS-232 interface enables data, date and time to be downloaded to a PC or printer
bluedot Download readings to a printer or PC and includes date and time


 Force Ranges

Model RangeDrive
Size F/Sq		Adapters
Included
ETP-100 3 - 73.7 lb-ft
4 - 100 N-m		1/2”1/4" & 3/8"
ETP-1000 36.9 -737.5 lbf-ft
50 - 1000 N-m		3/4”1/2" & 3/8"
