ETMX - ETMPX
Data Logging Limited Access Digital Tension Meter |
3 Ranges
0.5 - 100, 1 - 200, 1 - 500 (g or cN)

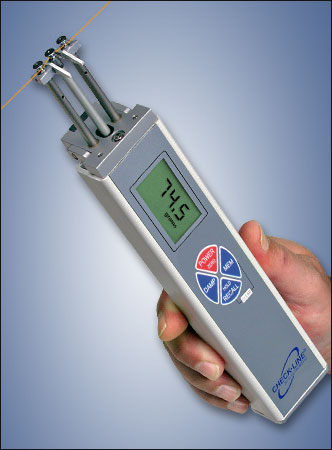

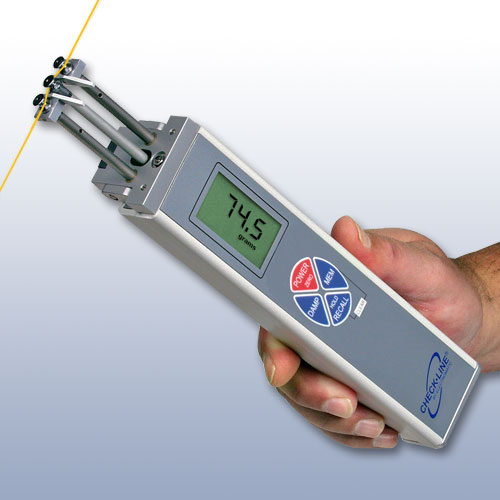

Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.
Store up to 4000 displayed tension values in memory and statistics (Last, AVG, MIN, MAX, MIN-PEAK, MAX-PEAK), which can be transmitted using the serial output port.

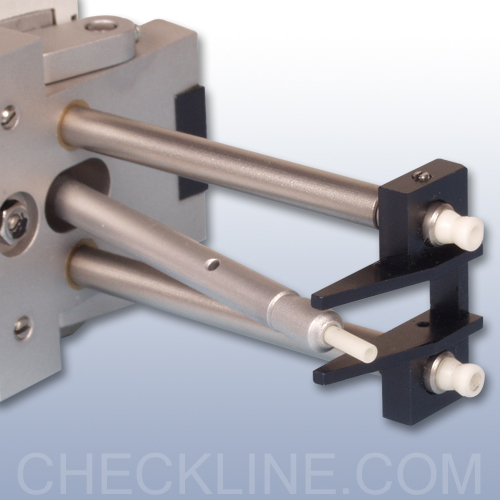

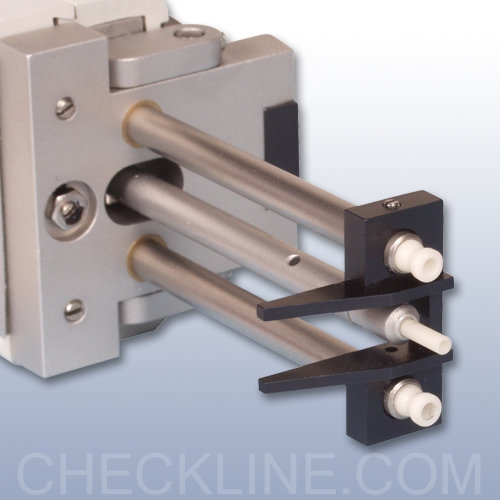

ETMX models feature miniature, high speed rollers for filament speeds up to 2000 m/min. ETMPX models features non-rotating, ceramic pins for speeds to 6000 m/min.
Reversible display for right or left-hand operation
|
 User Selectable Units Grams or Centinewtons | | New filament guide for easy acquisition of material | | Adjustable damping for easier readings when tension fluctuates | | Backlit LCD Display |
| | 0-2 VDC analog output for connection to a chart recorder or datalogger | | USB output for batch download or real-time data transfer to TensionInspect Software | | TensionInspect Software plus USB cable provided FREE |
|
| Model |
Range | Resolution | Rollers or Pins |
| ETMX-100 |
0.5-100.0 | 0.1 | Rollers |
| ETMX-200 |
1-200 | 1 | Rollers |
| ETMX-500 |
1-500 | 1 | Rollers |
| ETMPX-100 |
0.5-100.0 | 0.1 | Ceramic Pins |
| ETMPX-200 |
1-200 | 1 | Ceramic Pins |
| ETMPX-500 |
1-500 | 1 | Ceramic Pins | | |
| Selectable Units: Grams or Centinewtons
Outer Roller Spacing 24mm
Standard Calibration Material 0.20 mm Ø Polyamide Monofilament |
| |
|
Tension Inspect
Data Transfer & Analysis Program For The ETMX and MST Tension Meter |  |
TensionView is an easy-to-use program designed to display, record, graph and print data transferred from the gauge. | | Click image for more info
|
|
Accuracy
|
±1 % full scale ±1 digit or better
(typical ±0.5 % full scale)
|
|
Factory Calibration Material
|
0.20 mm Ø Polyamid Monofilament
|
|
Minimum Access Space Required
|
3/4" x 1" (20 x 26mm)
|
|
Guide Roller / Pin Material
|
Rollers, chrome-plated steel, std : 2000 m/min
Ceramic pins, optional : 6000 m/min
|
|
Outputs Signal Analog
|
ANALOG, 0-2.0 V DC, proportional to tension
|
|
Outputs Signal Digital
|
RS232 (9600, 8,N, 1)
|
|
Measuring Principle
|
Strain-gauge bridge
|
|
Maximum Sensing-Roller Displacement
|
0.5mm
|
|
Scanning Frequency
|
100 / sec., except 40/sec. in PEAK mode
|
|
Display Update
|
0.5 sec. (2 times per second)
|
|
Thermal Drift
|
0.25% full scale per degree C
|
|
Natural Frequency
|
250 Hz
|
|
Over Range
|
10% FS, without accuracy guarantee
|
|
Overload Protection
|
200%
|
|
Temperature Limits
|
40-115° F (5-45° C)
|
|
Automatic Zero
|
± 20% of range
|
|
Rel. Humidity Limit
|
95%
|
|
Battery/Life
|
9 volt, long-life lithium (included), non-rechargeable / Approx. 80 hrs. (Note: A standard 9V alkaline battery can be used as a backup, but with greatly reduced life.)
|
|
Low Battery Voltage Indicator
|
LO BAT, or equivalent display
|
|
Weight
|
14 oz. (400 g)
|
|
Dimensions
|

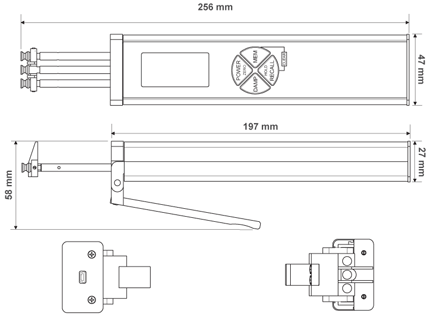

13" x 1-3/4" x 1" (330 x 45 x 25mm)
|
|

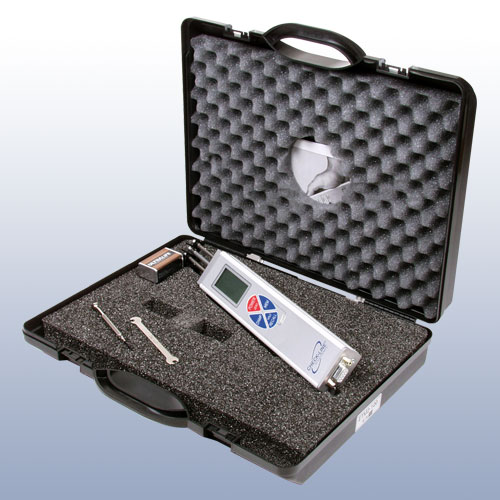

Complete Kit
|
Tension Meter, one long-life 9V lithium battery and instructions, all supplied in a foam-fitted carrying case.
|
|
Memory
|
Last, average, MAX, MIN, MAX-PEAK, MIN-PEAK
|
|
|
Features
