Force Gauge Applications

Force Gauge Applications

Typical Applications
Bearing torque testing	Torsion spring testing	Tension spring testing
Burst testing of packaging materials	Switch activation force testing	Closure torque testing
Compression spring testing	Tablet crush testing	Wire terminal pull-off testing
Peel testing	PCB component pull-off testing	Muscle strength evaluation, ergonomics studies

Tension Tests

Knurling Cam Grip	Film Grip
Fine Point Grip	Wire Wrapping Grip
Tape Grip	Flat Chuck
Cam Grip	Wedge Grip
Pantograph	Small Grip
Compression Tests

Large Flat Head	Bend Test Stand
Peeling Attachment	Compression Jig
Compression Jig	Penetrating Pin Gauge
Attachment for Press
Other Tests

Hook for Corrugated Cardboard	Jakob's Chuck
Vise Grip	Pin Grip
Special Tests

Wire Terminal Grip and Wedge Grips	Zipper Bag Grips
Rotary Wire Terminal Ficture and Knurled Cam Grip for Cables	Coefficient of Friction Testerp
Peel Strength Table	Peel Strength Table
Table and Hook for 45 Degree Pull Tests	Table and Hook for 90 Degree Shear Tests


Syringe Test	Pill Crush

Surgical Tubing Catheter Test	Automotive Hood Piston Test

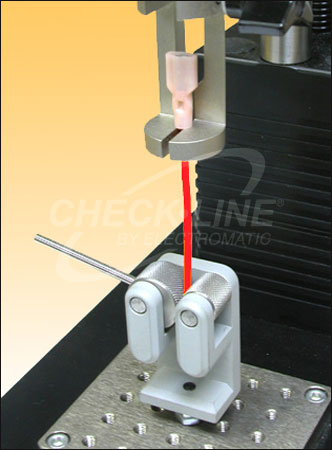

Electrical Wire & Terminal Crimp Test	Spring Test

Commercial QA/QC Test
