RG
Force Sensor Module |
The RG smart load cell is a plug-and-play force measurement building block designed for integration within assembly systems, weighing systems, and other process automation and testing automation applications. All functions are controlled by commands sent from a PC or PLC via its RS-232 connector. The RG's ASCII command library allows for peak force recall, set points, data averaging, data filtering, calibration, and many other functions. A rugged aluminum housing makes the RG durable enough to withstand the rigors of manufacturing environments. Capacities are available from 2 lb to 200 lb (10 N to 1000 N). |
 Measures tension and compression forces | | RS-232 and Mitutoyo outputs | | Averaging mode for average readings over time | | General purpose I/O for external device control | | Selectable units of measurement | | Peak memory for tensile and compressive forces | | Dedicated force limit outputs for direct hardware control (relays, etc) |
| | GCL-Gauge Control Language for full computer control | | External trigger for contact or switch testing and data capture | | Programmable analog and digital filters | | Programmable default configuration | | Power via 9 - 12 VDC | | Optional cable with bare leads for integration with PC/PLC and external power supply |
|

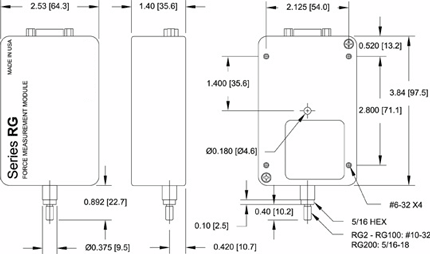

| Model |
Capacity | Resolution |
| RG2 |
2 lb
1 kgF
10 N | 0.002 lb
0.001 kgF
0.01 N |
| RG5 |
5 lb
2.5 kgF
25 N |
| RG10 |
10 lb
5 kgF
50 N |
| RG20 |
20 lb
10 kgF
100 N |
| RG50 |
50 lb
25 kgF
250 N |
| RG100 |
100 lb
50 kgF
500 N |
| RG200 |
200 lb
100 kgF
1000 N | | |
| Accuracy |
+/- 0.5% of full scale +/- 1 digi |
| Safe overload |
150% of capacity |
| Weight |
0.55 lbs (0.25 kg) |
| Temperature |
40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating) |
| Warranty |
3 Years |
|
|
