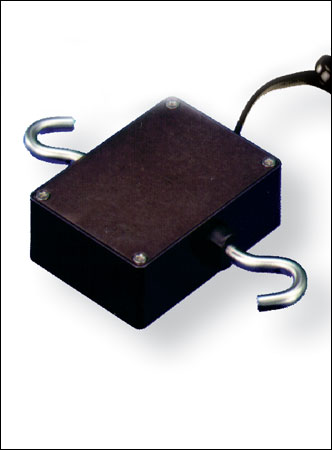

Tension & Compression Force Sensor

The SSM has been replaced by the R03. Please click here to view the new model

Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

Member of the BGI family of interchangeable sensors

Rugged aluminum housing

NIST-traceable certificate of calibration included

"Personality module" holds all calibration and configuration data

Measures tensile and compressive forces

Model	Capacity	Resolution
SSM025	0.25 lb 100 gF 1 N	0.0001 lb 0.05 gF 0.0005 N
SSM05	0.5 lb 250 gF 2.5 N	0.0002 lb 0.1 gF 0.001 N
SSM2	2 lb 1 kgF 10 N	0.001 lb 0.0005 kgF 0.005 N
SSM5	5 lb 2.5 kgF 25 N	0.002 lb 0.001 kgF 0.01 N
SSM10	10 lb 5 kgF 50 N	0.005 lb 0.002 kgF 0.02 N
SSM20	20 lb 10 kgF 100 N	0.01 lb 0.005 kgF 0.05 N
SSM50	50 lb 25 kgF 250 N	0.02 lb 0.01 kgF 0.1 N
SSM100	100 lb 50 kgF 500 N	0.05 lb 0.02 kgF 0.2 N

BGI
Remote Sensor Force / Torque Gauge

Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

Unlimited number of sensors possible due to unique design

RS-232, Mitutoyo and analog outputs

Click image for more info

Accuracy:	Accuracy: ± 0.15% of full scale ±1 digit + BGI
Weight:	0.4 lbs (0.2 kg)
Warranty:	3 years

PDF Instruction Manual Click Here to Download
