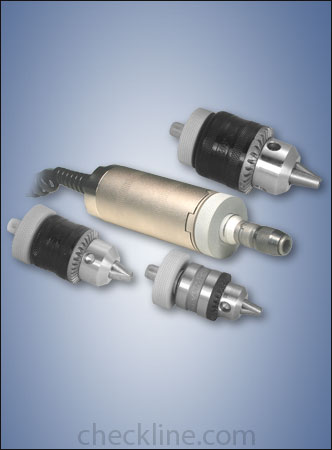

A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The STH has superb overload protection and is available in capacities from 10 oz-in to 100 lb-in.
Features
Member of the BGI family of interchangeable sensors
Outstanding overload protection
"Personality module" holds all calibration and configuration data
Interchangeable chucks (order separately)
3 Year Warranty
Force Ranges
Model
Capacity
Resolution
STH-10Z
10 oz-in 7 kg-mm 7 N-cm
0.01 oz-in 0.005 kg-mm 0.005 N-cm
STH-20Z
20 oz-in 14 kg-mm 14 N-cm
0.02 oz-in 0.01 kg-mm 0.01 N-cm
STH-50Z
50 oz-in 36 kg-mm 35 N-cm
0.05 oz-in 0.05 kg-mm 0.05 N-cm
STH-12
12 lb-in 140 kg-mm 135 N-cm
0.01 lb-in 0.1 kg-mm 0.1 N-cm
STH-50
50 lb-in 580 kg-mm 570.0 N-cm
0.05 lb-in 0.5 kg-mm 0.5 N-cm
STH-100
100 lb-in 1150 kg-mm 1150 N-cm
0.1 lb-in 1 kg-mm 1 N-cm
Dimensions
Chuck Min / Max Opening
G1016-1
G1016-2
G1016-3
G1017
0.028"-0.25"
0.062"-0.375"
0.078"-0.5"
Bit holder for STH, 1/4" hex
