FTS-MG
Force Test System |
 The FTS-MG is a complete Force Test System designed for compression and tensile testing of small samples. It precisely measures push pull forces as low as 0.002 lb with an accuracy of ± 0.5% full scale ±1 digit. The precision hand wheel allows fine control with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement.
The FTS-MG consists of the MG Digital Force Gauge and ES20 Manual Hand-Wheel Test Stand.

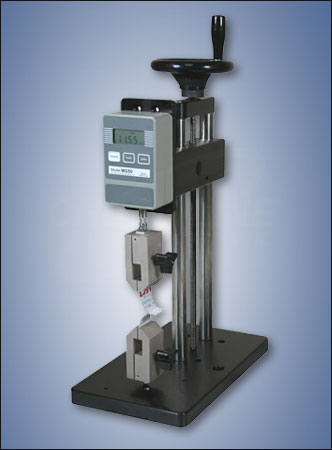

*NOTE: Shown with optional attachments |
 Mounting holes for bench mounting | | Optional 1" [25.4mm] dial indicator travel kit | | Display "real-time" or "peak" force | | Push-button calibration | | Battery life: 30 hours of continuous operation |
| | Battery or AC operation | | Large baseplate with 5 #10-32 UNF holes for fixture mounting | | User-selected units of Pounds, Kilograms or Newtons | | Includes NIST-Traceable calibration certificate | | 3 Year Warranty |
|
| Model |
Capacity | Resolution |
| FTS-2MG |
2 lb
1 kg
10 N | 0.002 lb
0.001 kg
0.01N |
| FTS-10MG |
10 lb
5 kg
50 N | 0.01 lb
0.005 kg
0.05 N |
| FTS-50MG |
50 lb
25 kg
250 N | 0.05 lb
0.02 kg
0.2 N |
| FTS-100MG |
100 lb
50 kg
500 N | 0.1 lb
0.05 kg
0.5 N | | |
|
ES001
Dial Indicator / Distance Meter |  |
Displays up to 1" of displacement Resolution of 0.001" | | Click image for more info | | ___________________________________________ |
|
ES002
Digital Indictator / Distance Meter |  |
Displays up to 1" (25.4mm) of displacement Resolution of 0.0005" (0.01 mm) | | Click image for more info | | ___________________________________________ |
|
MG
Economical Digital Force Gauge - Push Pull Gauge |  |
User-selected units of Pounds, Kilograms or Newtons 3 Year Warranty | | Click image for more info | | ___________________________________________ |
|
ES20
Mechanical Test Stand |  |
Mounting holes for bench mounting Optional 1" [25.4mm] dial indicator travel kit | | Click image for more info
|
| Capacity |
100 lb (45 kg) |
| Stroke |
9" (229mm) |
| Travel Rate |
0.06" (1.5mm) per revolution |
| Accuracy |
± 0.5% of full scale, ±1 least significant digit |
| Sampling Rate |
30 readings per second |
| Display |
4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation |
| Power |
Non-rechargeable 9V battery or AC operation with included adapter |
| Battery Life |
30 hours of continuous use, LO BAT indicator |
| Sensor Deflection |
0.010" (0.25 mm) maximum deflection at full load |
| Overload Protection |
150% or higher |
| Accessories Included |
Hook and Flat head |
| Warranty |
3 years |
 * When ordering a FTS-MG test system and most grips, the G1039 coupler or any length extension rod is required in order to provide adequate clearance between the load cell shaft and the grip. Other gauge series do not require a coupler or extension rod. |
|
|
