DCI
DC Inspector Porosity Detectors |
Measuring Ranges:
DCI-10: 0 to 10,000 Volts with 9V battery
DCI-20: 0 to 20,000 Volts with 12V external battery
Resolution: 1 kV Steps

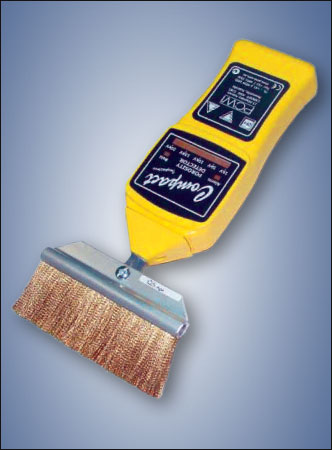

"Single" handheld, light weight porosity detector for simplicity and ease of operation. Designed with the inspector in mind - Weighs only 460g.
Applications
Porosity detection of tanks, valves, pumps, pipeline field joints and general inspection and maintenance.
Suitable for a broad range of testing and inspection requirements. It is recommended that the integral probe be limited to a 5" (125mm) wide flat brush or fan brush electrode. |
 LED bargraph display of voltage | | Integral probe |
| | LED battery condition indicator | | Audible & visual alarms |
|
| Model: |
DCI-10 |
DCI-20 |
| Unit Weight: |
1 lb (460 g) |
1 lb (460 g) |
| Packed Weight: |
3.3 lbs (1.5 kg) |
4.6 lbs(2.1 kg) |
| Display Voltage: |
LED bargraph |
LED bargraph |
| Test Voltage: |
0 to 10 kV |
0 to 20 kV |
| Battery: |
9V Internal |
12V external |
| Output Test Current: |
up to 100µA |
| Dimensions: |
Gell Cell 3Ah Slide-Off |
| Dimensions: |
8.25" x 3.1" x 1.5" (210 x 75 x 35 mm) excluding brush |
| Alarm: |
Audible and visual |
| Battery Condition: |
LED indicator |
|
The Inspector Kit comprises the detector, power pack (20kV Inspector only), 5-inch (125 mm) flat brass wire brush or optional fan brush, 23-feet (7 m) Earth lead with clamp, carrying case, operating instructions with Conformance Certificate. |
|
|
