PHD

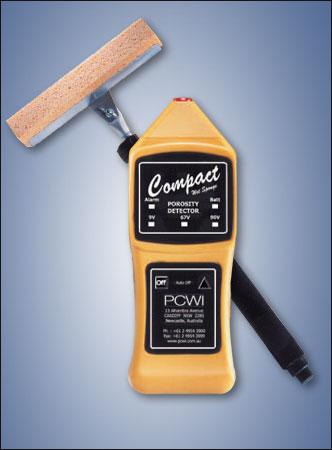

Wet Sponge Pin Hole Detector |
Measuring Ranges: 0 to 20 mils (0 to 500 µm)
Test Voltage: Selectable 9, 67.5 or 90V
Thin Film Porosity Testing.
These units are also known as wet sponge testers, low voltage holiday detectors, low voltage porosity detectors or pin hole detectors. |
 LED display of voltage | | Large probe head (9" x 1.57"/230 x 40mm) and wider sponge gives faster tests.
Smaller probe heads available. | | Low battery condition LED indicator | | Internally mounted 9 Volt battery |
| | The PCWI wet sponge tester comes with selectable 9, 67.5 or 90V test voltage | | The PCWI wet sponge tester comes with selectable 9, 67.5 or 90V test voltage | | Earphone jack to allow testing in noisy environments (earphone not supplied) |
|
| Test Voltage: |
Selectable 9, 67.5 or 90V |
| Range: |
0 - 20 mils (500µm) |
| Operatng Temperature: |
32 to + 122°F (0 to +50°C) |
| Telescopic Probe Length: |
14" to 47" (350 to 1200 mm) |
| Power Supply: |
9V battery |
| Dimensions: |
8.25" x 3" x 1.25" (210 x 75 x 35 mm) |
| Alarm: |
Audible and visual |
| Battery Condition: |
Low battery LED indicator |
| Weight: |
13 oz (350g) |
|
The Thin Film (Wet Sponge) Pinhole Kit comprises the detector, telescopic probe handle with sponge, 23-feet (7m) Earth lead and clamp, carrying case, operating instructions with Conformance Certificate. |
|
