Z2
Digital Force Gauge |
7 Ranges up to 220lbs
Measures Push / Pull Force

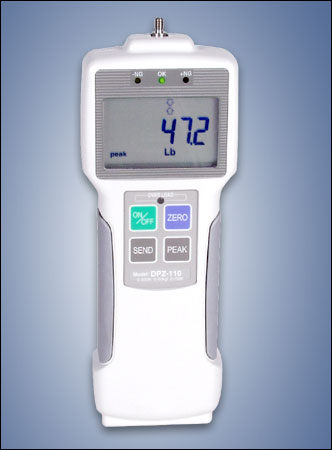

The new Check-Line model Z2 is a high performance, digital force gauge which offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.
Store up to 1000 values in memory, which can be transmitted using the Digimatic or serial output ports. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.
Connect a Z2 force gauge with an MX Series test stand and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z2 force gauge, or maintain the force between the Z2 High and Low setpoints. Force control is ideal for fatigue or non-destructive testing. |
 Ergonomically-designed, rugged die-cast aluminum housing | | "Zero Set" to zero the gauge in all operating positions (Tare) | | Operates on rechargeable NiCd batteries or AC adapter | | Overload protection 200 % full scale | | For hand-held use or mounting on test stands | Display can be reversed for inverted use: e.g. on teststands
 | | Output signals
(RS 232 C, analog and Mitutoyo Digimatic) |
| | Quick display update rate of 20 times/s | | User selectable units: N, kgf (gf) and lb (oz) | | Easy to use | Selectable Modes
Real Time (to display load transients)
Peak Modes (to capture the peak force achieved during a test) | | Supplied with NIST Calibration certificate
| | ISO/IEC 17025 Long-form Certificate & Test Data is optionally available | | 2 Year Warranty |
|
Large, Easy-to-read LCD Display
| Model |
Capacity | Resolution |
| Z2-0.4 |
7.00 oz
200 g
2 N | 0.01 oz
0.1 g
0.001 N |
| Z2-1 |
18 oz
500 g
5 N | 0.01 oz
0.1 g
0.001 N |
| Z2-4 |
4.4 lb
2 Kg
20 N | 0.001 lb
0.001 Kg
0.01 N |
| Z2-11 |
11 lb
5 Kg
50 N | 0.01 lb
0.001 kg
0.01 N |
| Z2-44 |
44 lb
20 Kg
200 N | 0.01 lb
0.01 Kg
0.1 N |
| Z2-110 |
110 lb
50 Kg
500 N | 0.1 lb
0.01 kg
0.1 N |
| Z2-220 |
220 lb
100 Kg
1000 N | 0.1 lb
0.1 Kg
0.1 N | | |
|
SW-1
Data Acquisition Software for Force Gauges & Torque Gauges |  |
Full SPC and graphing capabilities Automates your data collection Provides a running log of all measurements along with a chart of the data as well as statistical information | | Click image for more info | | ___________________________________________ |
|
HV-110
Manual Test Stand |  |
Hand wheel design provides a high degree of precise control Optional digital distance meter | | Click image for more info | | ___________________________________________ |
|
MX-110
Motorized Vertical Test Stand |  |
Force Controlled operation with Z2 and ZP force gauges Jog, Single Cycle, Continuous Cycle, Force Control | | Click image for more info | | ___________________________________________ |
|
MESURgauge
Mesurgauge Load & Travel Analysis Software |  |
Windows 7 Compatible | | Click image for more info
|
| | | | All Z2 gauges are sold as complete kits that include the gauge, hard plastic carrying case, AC adapter/charger, and attachments (flat head, conical, chisel, notched, small hook, large hook, Y-fork, and extension rod). Built-in NiCad rechargeable batteries. |
 |
|
Displacement:
|
0.2 mm
|
|
Accuracy:
|
± 0.2% Full scale ± 1 digit
|
|
Selectable units
|
N, Kgf (gf), lb (oz)
|
|
Display:
|
4 digit, 12 mm high
|
|
Overload capacity:
|
200% Full scale,
display flashes beyond 105% full scale
|
|
Zero adjustment (Tare)
|
10% Full scale
|
|
A/D Converter:
|
14 bit
|
|
Output signal:
|
RS 232 C (8, 1, N, 2400),
analog ± 1 V DC,
Mitutoyo Digimatic
|
|
Displacement at full scale capacity
|
0.10 mm
|
|
Temperature range:
|
32° to 100°F (0° to 40°C)
|
|
Air humidity:
|
85% RH, max.
|
|
Low battery indicator:
|
Display flashes when battery is low
|
|
Power supply:
|
Rechargeable NiCd battery pack
and/or 230 AC Adapter
|
|
Housing dimension:
|
215 x 65 x 51 mm (L x W x H)
|
|
Weight, net (gross)
|
approx. 430 g (1300 g)
|
|
Warranty
|
2 Years
|
|
|
