LS-6000
Linear Stroboscope |

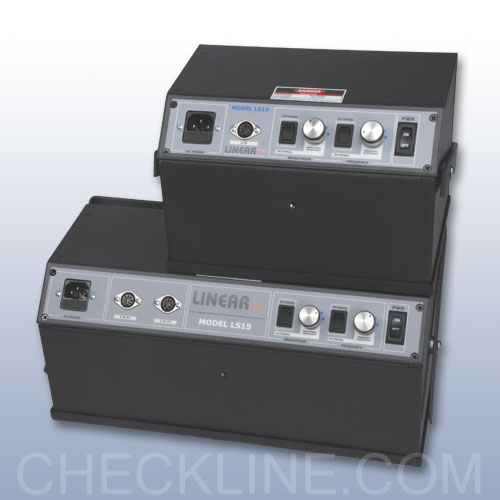

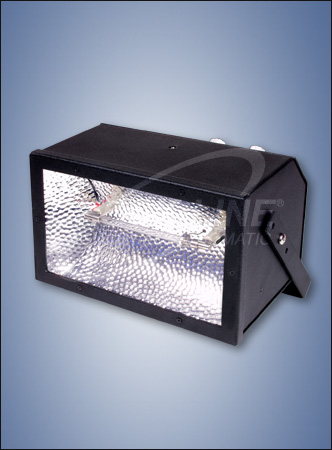

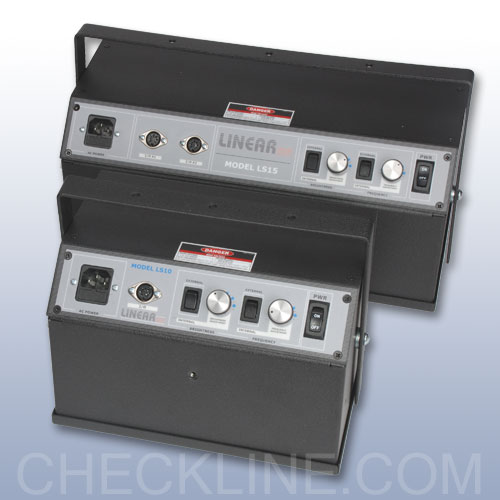

The new CHECK-LINE Series LS Linear Stroboscope is offered in a 10 and 15 inch width. They are designed to provide an extremely bright, uniform light source that is typically required to perform visual inspection of narrow and wide web-type products such as; labels, printed material, textile fabrics, metals, non-wovens and more. Two or more units can be combined for continuous inspection of wider webs.

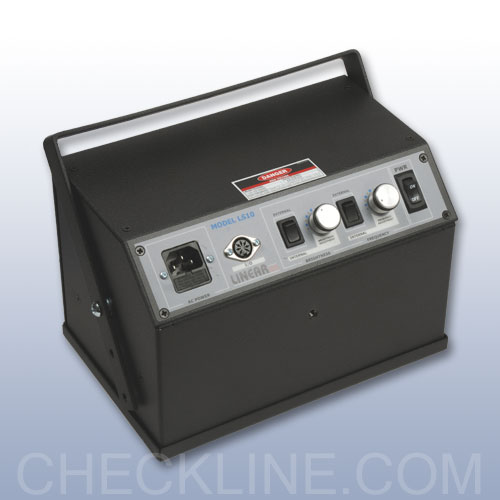

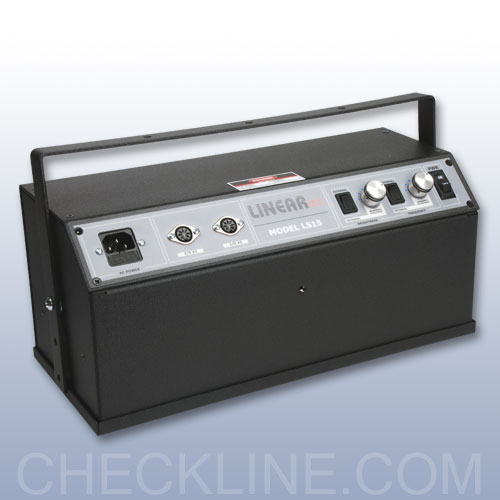

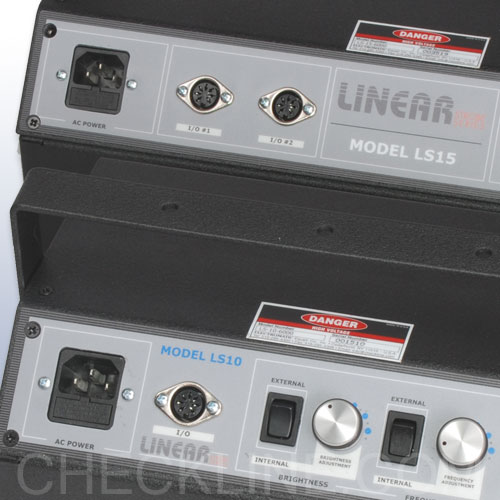

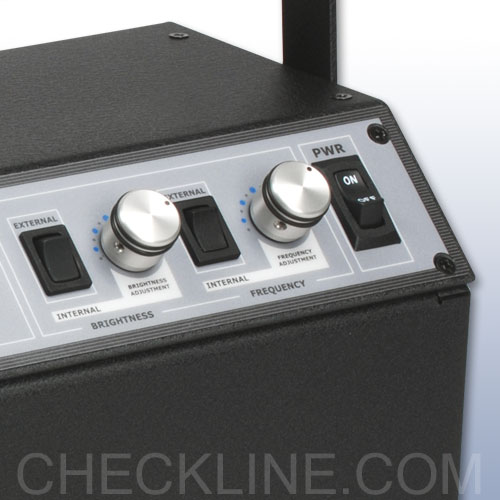

Flash frequency can be automatically synchronized to varying web speeds using an external sensor or user-controlled using a precision adjustment knob located on the rear control panel. Flash intensity (brightness) can also be manually adjusted via an adjustment knob or controlled externally using a 0-6 Vdc input. |

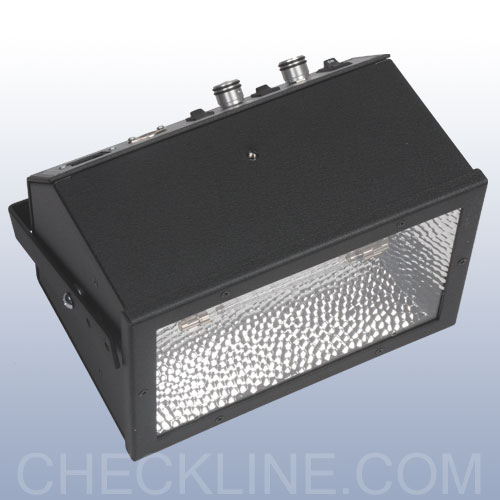

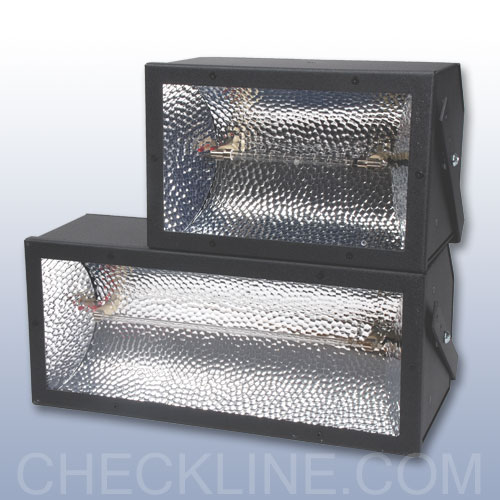

 Super-bright Xenon Tube and highly-polished hammertone reflector combines to generate industry-leading light intensity and uniformity | | Models are offered in 10 inch (250 mm) and 15 inch (380 mm) widths | | Internal and External control of flash rate and flash intensity (brightness) |
| | Steel enclosure is specifically-designed to efficiently dissipate heat eliminating the need for bulky heat sinks | | 2 or more LS models can be connected to each other for wider web coverage |
|
at 30 cm Distance, 6000 flashes/min (FPM) |
|
LS-GAPSENSOR
Label Sensor for Triggering On Label Gaps |  |
The LS-GAPSENSOR is supplied with a DIN connector for direct connection from CHECK-LINE LS-10 & LS-15 linear strobes. IP66/Nema 4 rating provides excellent physical protection and is waterproof. | | Click image for more info | | ___________________________________________ |
|
LS-REGSENSOR
Registration Mark Sensor |  |
Color Mark registration detection on transparent and translucent, including many metalized films and paper | | Click image for more info
|
| Energy Output |
.72 joules |
| Flash Duration |
10us |
| Flash Range |
Internal Control:400-6000 FPM
External Control: unlimited |
| Flash Frequency Adjustment |
INTERNAL, using 10-turn potentiometer
EXTERNAL, using external trigger sensor |
| Flash Brightness Level |
INTERNAL, using potentiometer (50-100%)
EXTERNAL, 10:1 using voltage input (1.5-6 Vdc) |
| Illumination |

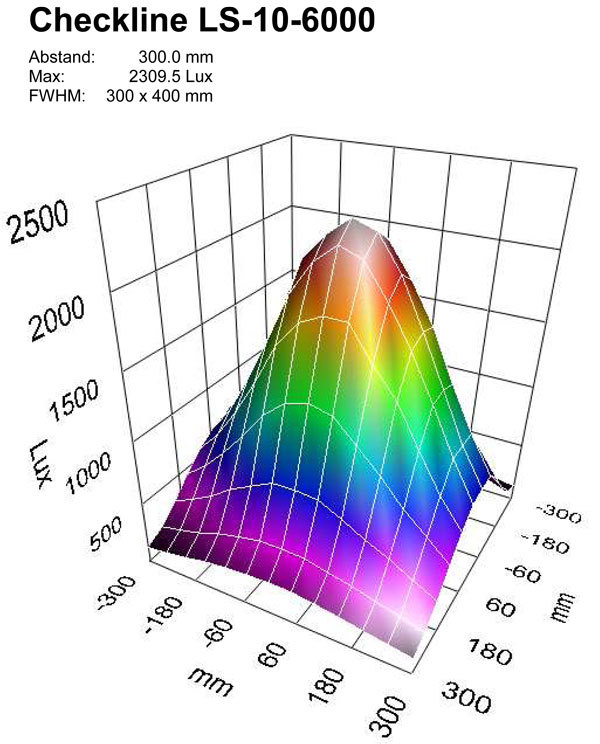

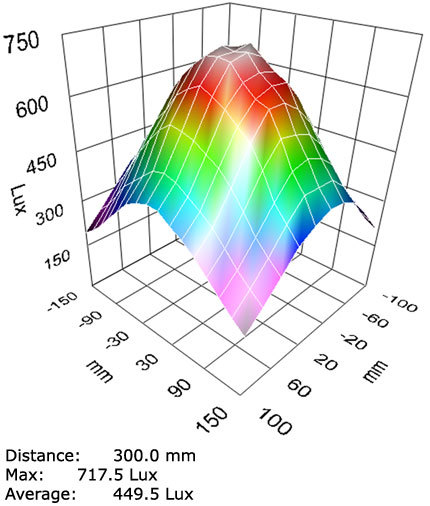

180 ft-c (1960 Lux), measured at 2400 fpm |
| Coverage, Maximum Web Width |
LS-10-6000: 24 inches (600 mm)
LS-15-6000: 36 inches (900 mm) |
| Trigger Supply |
Regulated 12VDC @100mA |
| External Trigger Input Signal |
+5V at 20mA NPN |
| Frequency Adjustment |
Variable Control |
| External Sensor Types |
magnetic pickups, contact closures or open collectors (NPN) |
| Display |
None |
| Operating Temp Range |
-10 to 110° F (-23 to 43° C) |
| Operating Humidity Range |
0 to 90% noncondensing |
| Body Material |
Fabricated Metal Enclosure |
| Weight |
LS-10-6000: 4.2 lbs (1.9 Kg)
LS-15-6000: 5.6 lbs (2.6 Kg) |
| Dimensions |
LS-10-6000: 10"L x 5.4"W x 6.4"H
(without mounting bracket)
LS-15-6000: 15"L x 5.4"W x 6.4"H
(without mounting bracket) |
| Power Requirement |
115/230 VAC 50/60Hz (Specify prior to order) |
| Power Consumption |
0.5A Maximum |
| Flash Tube Life |
100 million flashes (While maintaining 70% of initial intensity) |
| Accessories Available |
Label Sensor, Extra Tube, Cables |
| Customization Options |
Electronics, Lamp, UV, Kelvin Correction, Color Correction, etc. |
| Warranty |
1 year |
|
|
