High Precision Tension Meter |
11 ranges, 20-120 g to 5-50 Kg
A precision movement with high over-load capacity provides highest accuracy and long lasting calibration |
 Large, linear scale for higher reading accuracy over the entire range.
| | Material thickness compensation on all high range models. | | DXN's are individually calibrated for highest accuracy. |
| | Choice of guide rollers for filament speeds up o 5000 m/min.
| | Rugged die-cast aluminum housing. | | NIST-Traceable calibration optionally available. |
|

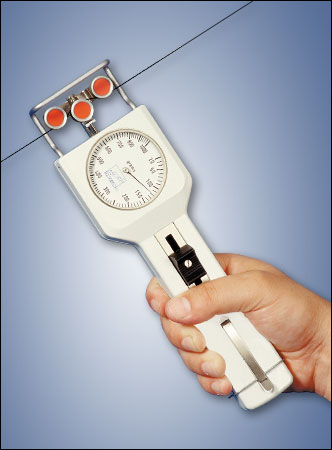

Model DXN-400 with measuring headwidth 65 mm
| Model |
Range | Measuring Head Width mm | Calibration Material | Material thickness compensator |
| DXN-120 |
20-120 g | 65 | PA: 0.12 mm Ø | No |
| DXN-200 |
20-200 g | 65 | PA: 0.20 mm Ø | No |
| DXN-400 |
20-400 g | 65 | PA: 0.30 mm Ø | Yes |
| DXN-1000 |
50-1000 g | 116 | PA: 0.50 mm Ø | Yes |
| DXN-1000EX |
100-1000 g | 116 | PA: 0.80 mm Ø | Yes |
| DXN-2000 |
200-2000 g | 116 | PA: 0.80 mm Ø | Yes |
| DXN-5000 |
400-5000 g | 116 | PA: 1.00 mm Ø | Yes |
| DXN-10K* |
2-10 Kg | 116 | PA: 1.00 mm Ø | Yes |
| DXNL-20K** |
5-20 Kg | 216 | PA: 1.50 mm Ø | Yes |
| DXNL-30K** |
5-30 Kg | 216 | PA: 1.50 mm Ø | No |
| DXNL-50K** |
5-50 Kg | 216 | Steel Rope 1.50mm | No | | |
*Lever optional on 10K model
**20K, 30K and 50K models include lever
Options
Air Damping (A)
An adjustable, precision air dashpot provides steady tension readings for those applications where high tension fluctuations exist
Lever (L)
A heavy-duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 K higher.
High Speed Rollers
(K) For speeds up to 3500 m/min
(U) For speeds up to 5000 m/min. |
| |
|
Roller Guide
Available Rollers for Hand-Held Tension Meters |  |
| | Click image for more info
|
| Accuracy |
± 1% of Full Scale or ± 1 graduation mark on scale |
| Diameter |
54 mm (2.13") |
| Maximum Speed |
(standard) 2000 m/min
(optional) 3500 m/min (K)
(optional) 5000 m/min (U) |
| Outer roller distance, c:c |
DXN-30 to DXN-1000 EX - 38 mm
DXN-2000 to DXN-10K - 100 mm
DXN-20K - 200 mm
DXN-30K to DXN-50K - 250 mm |
| Roller Material |
Hard-coated aluminum (standard)
Hardened steel (ST)
Ceramic (CE)
Phenolic (PH) |
| Housing material |
Die-cast aluminum |
| Dimensions |
260 x 72 x 44 mm
(10.2" x 2.8" x 1.7") |
| Weight |
700 g (1.5 lbs.), approx. |
|
|
