TSA
Manual Lever Operated Test Stand

TSA - Vertical
TSAH - Horizontal

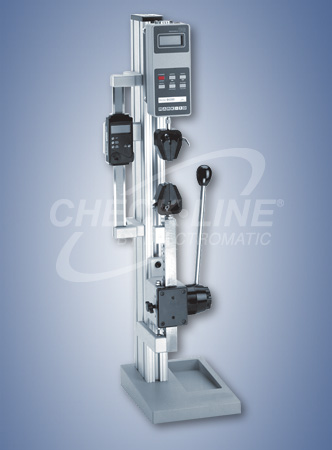

The lever operated Force Measurement Test Stand Model TSA is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Compatible with the following gauges, MG, BG, CG, BGI

*Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

Optional Horizontal Configuration




 Features

bluedot Precision ground rack and pinion mechanism
bluedot Threaded holes for bench mounting
bluedot Loading lever can be positioned in 30° increments for ease of operation
bluedot Adjustable travel stops
bluedot Adjustable wear plates for smooth, precise motion
bluedot Optional digital travel display
bluedot Friction brake

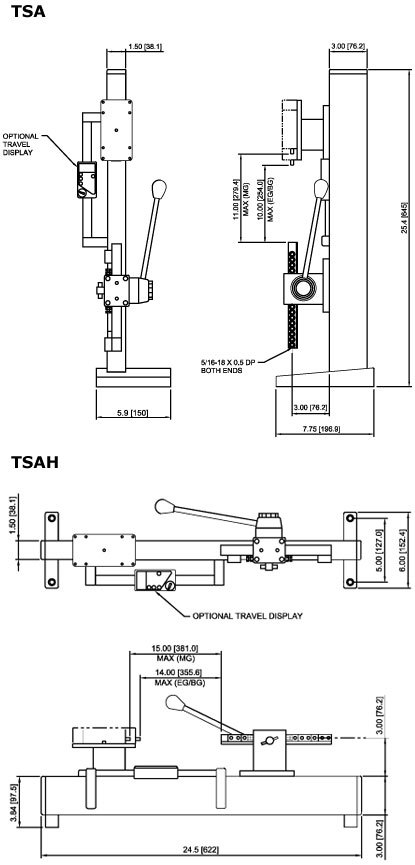

 Dimensions

dimensions


 Related Products


BG
Digital Force Gauge		related

bluedot RS-232, Mitutoyo and analog outputs

bluedot Selectable units of measurement

 Click image for more info
___________________________________________


MG
Economical Digital Force Gauge - Push Pull Gauge		related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty

 Click image for more info


 Specifications

Maximum force 750 lb
Maximum travel, with stops 3.75" [95 mm]
Maximum travel, without stops 6" [152 mm]
Travel rate 3" [76.2 mm]/lever revolution
Weight TSA: 16 lb
TSAH: 13 lb
Warranty 3 Years


 Downloads

manual  Data Sheet  Click here to Download

manual  Instruction Manual  Click here to Download


 Buy Now

  Item Price Description Stock
Check the items you would like to purchase then click "Buy Now"
TSA $975.00 TSA Test stand verticalIn Stock
TSAH $975.00 TSAH Test stand horizontalIn Stock
Accessories
TSA001 $650.00 Digital travel display for TSA/TSAHIn Stock
TSA002 $150.00 Horizontal/wall mounting kit for TSA/TSAHIn Stock
AC1004 $85.00 Mounting kit, BGI to TS-Series test standsIn Stock
In Stock In stock 1 Week Lead Time 1 Week Lead Time Special Order Item Special Order Item
