ESMH
Motorized Horizontal Test Stand |
 The new ESMH is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.
The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMH uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a force gauge and grips to create a complete testing solution.
*NOTE: Shown with optional equipment, force gauge and attachments sold separately. |
 Mounting Holes for bench mounting |
| | Removable loading plate with matrix of #10-32 threaded holes |
|
|
BG
Digital Force Gauge |  |
RS-232, Mitutoyo and analog outputs Selectable units of measurement | | Click image for more info | | ___________________________________________ |
|
MG
Economical Digital Force Gauge - Push Pull Gauge |  |
User-selected units of Pounds, Kilograms or Newtons 3 Year Warranty | | Click image for more info
|
| Capacity |
50 lbs / 25 Kg / 250 N |
| Stroke |
13" [330 mm], 12" [305 mm] w/optional travel display |
| Travel Rate |
0.2 - 50 in/min [5 - 1270 mm/min] |
| Speed Accuracy |
±5% of setting, ±0% variation with load |
| Limit Switch Repeatability |
±0.001" [0.03 mm] |

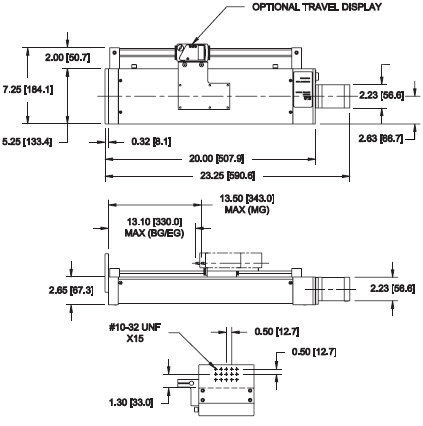

| Dimensions |
Refer to Dimensions above |
| Compatible Gauges |
BG and MG |
| Warranty |
3 years |
|
|
