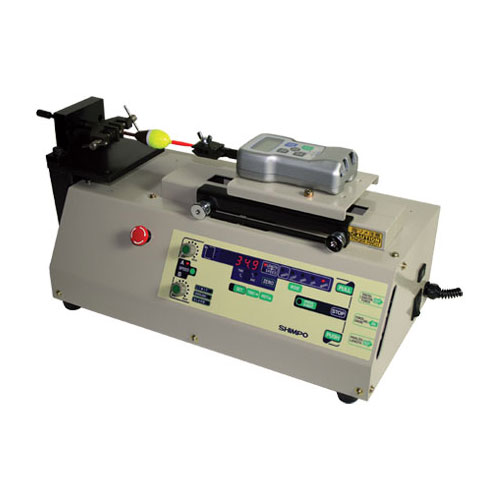

FGS-100PXH
Motorized Horizontal Test Stand |
2 Models Available
FGS-100PXH: 1.6" - 16" inches/min (Standard Speed)
FGS-100PXL: .4" - 4" inches/min (Low Speed)
Motorized horizontal teststand for single cycle or continous cycling capabilities. For use with FGE / FGV force gauges.
*FORCE GAUGE NOT INCLUDED
Designed to work with the FGE & FGV force gauges. |
 User programmable set points: speed, distance, stop time | | Single cycle and continuous cycling capabilities | | High and low force set points user selectable through RS232C interface | | Compatibility with nearly all manufacturers’ gauges |
| | All gauge functions can be communicated through stand via RS232 interface | | Analog distance outputs | | Manually adjustable upper and lower limits | | All steel construction |
|
|
Capacity
|
110 lbs / 50 kg / 500 N
|
|
Stroke
|
5.5" / 140 mm
|
|
Fixed position (clearance):
|
5 steps from 2.4" - 7.1" 1.2"/step
(61 to 181 mm, 30 mm/step)
|
|
Travel rate
|
FGS-50PXH: 1.6" - 16" inches/min
FGS-50PXL: .4" - 4" inches/min
|
|
Travel distance:
|
displayed with a resolution of 0.1 mm; output 10 mV/mm
|
|
Power supply:
|
115 AC, 60Hz (standard)
230 V AC, 50 Hz(optional)
|
|
Dimensions:
|
17.6" x 9.2" x 8.1" (L x W x H)
|
|
Weight
|
42 lbs
|
|
Compatible Gauges
|
FGE / FGV
|
|
Warranty
|
1 year
|
|
|
