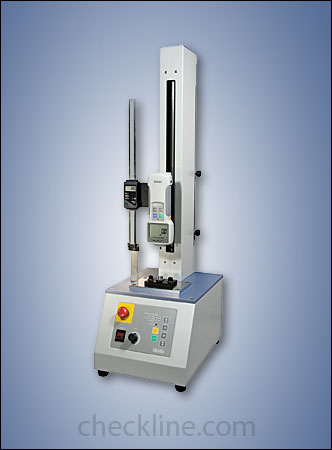

MV-275
Motorized Vertical Test Stand |
Capacity: 275 lbs / 125 Kg / 1225 N
The new MV-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.
Speed control, quick return and emergency stop are standard features. Optional digital distance meter available. |
 One stand for both compression (push) and tension (pull) tests | | Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control | | Clearance 16" |
| | Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range. | | Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available) | | Optional timer and digital distance meter |
|
|
LP-99
Lexan Safety Shield |  |
Helps protect personnel from injury by containing debris during testing | | Click image for more info | | ___________________________________________ |
|
NIST CAL
|  |
| | Click image for more info
|
Standard Speed |
Optional High Speed |
Optional Low Speed |
0.4~9.4"/min |
0.7~23"/min |
0.15~4.2"/min |
|
| Capacity |
275 lbs / 125 Kg |
| Travel Rate |
Refer to Speed Configuration above |
| Dimensions |
Refer to Dimensions above |
| Compatible Gauges |
DS2, Z2 and ZP |
| Warranty |
2 years |
| *Note |
Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second |
|
|
Features
