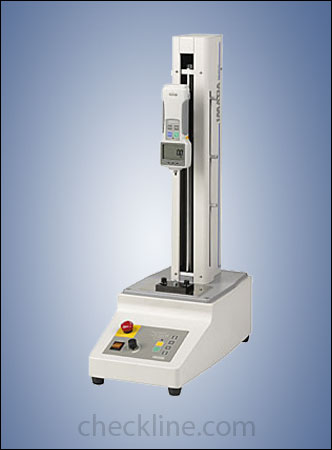

MX-500 motorized test stands offer advanced force testing. The combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.
Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.
Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.
Speed control, quick return and emergency stop are standard features.
*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges. |
Features
One stand for both compression (push) and tension (pull) tests
