CAP-TA
Cap Torque Tester |

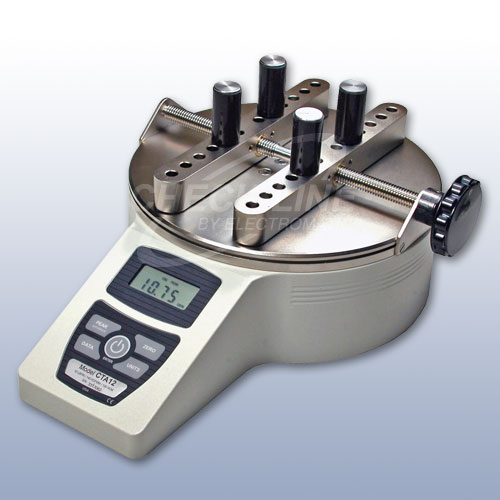

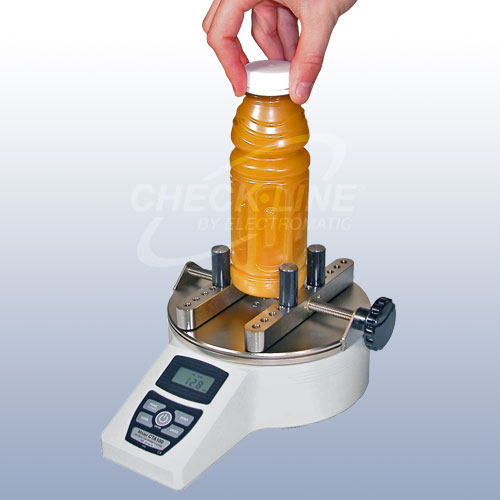

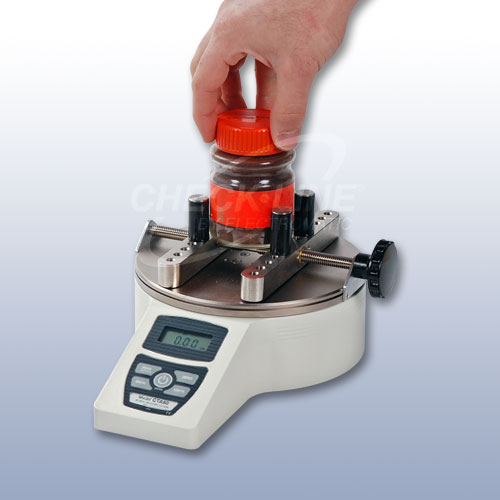

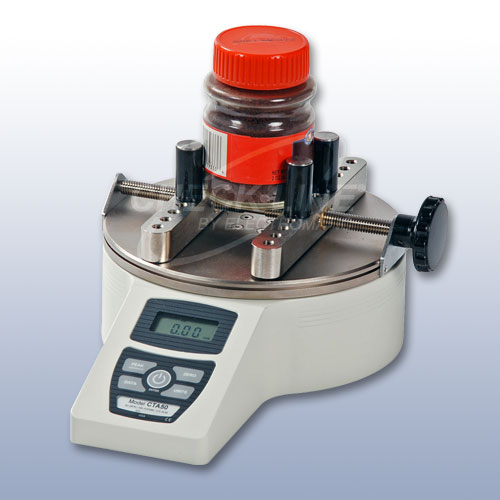

 The CAP-TA Cap Torque Testers is a simple, accurate, and economical solution for manual cap torque testing. Ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques.

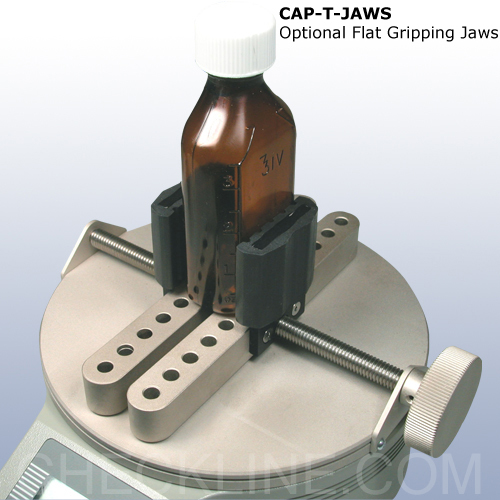

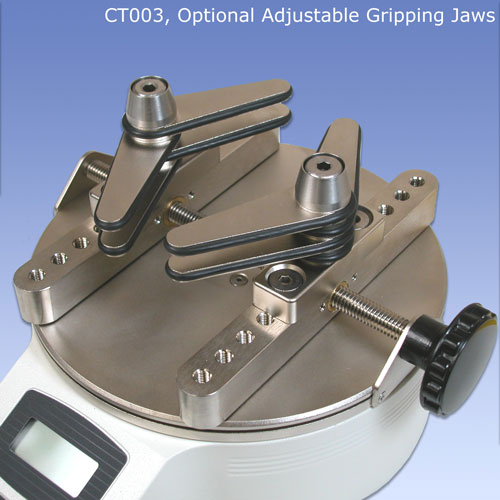

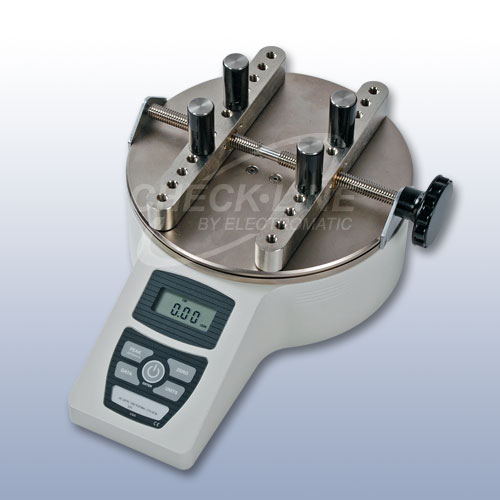

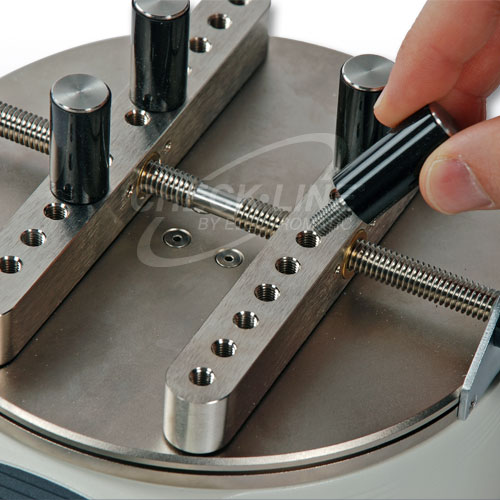

Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of flat rubber-edged jaws are available for unique profiles. Innovative mechanical overload protection provides peace of mind.
The CAP-TA cap torque tester features an aluminum housing, rugged construction and close attention to engineering you'd expect.
 |

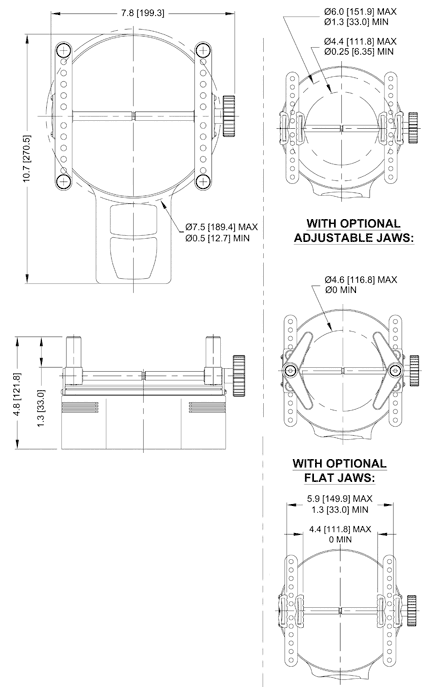

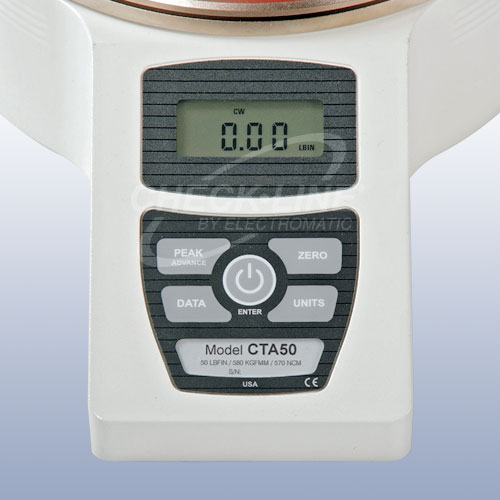

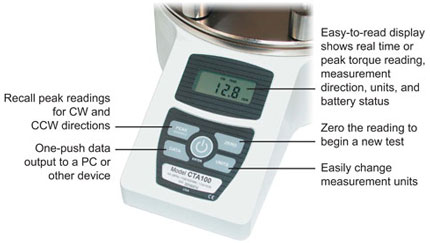

 Measures in real time or peak torque modes | | Data output via RS-232 and Mitutoyo | | Selectable units of measurement | | Accepts samples up to 7.5" (189.4 mm) dia. | | Movable threaded sample gripping posts |
| | Captures peak readings for application and removal torques | | 3 torque capacities available | | Operates on a 9V battery or AC adapter | | 3 Year Warranty |
|
| Model |
Capacity | Resolution |
| CAP-TA-12 |
12 lb-in
140 kg-mm
135 N-cm | 0.01 lb-in
0.1 kg-mm
0.1 N-cm |
| CAP-TA-50 |
50 lb-in
580 kg-mm
570 N-cm | 0.05 lb-in
0.5 kg-mm
0.5 N-cm |
| CAP-TA-100 |
100 lb-in
1150 kg-mm
1150 N-cm | 0.1 lb-in
1 kg-mm
1 N-cm | | |
|
DP-1VR
Mitutoyo SPC statistical processor/printer |  |
Portable printer for use with force and torque gauges | | Click image for more info | | ___________________________________________ |
|
MESURgauge
Mesurgauge Load & Travel Analysis Software |  |
Sends data from a force or torque gauge and travel display to a PC for further analysis | | Click image for more info
|
| Accuracy |
±0.5% of full scale ±1 digit |
| Safe overload |
150% of capacity |
| Weight |
6.5 lbs (2.9 kg) |
| Warranty |
3 years |
|
|
