DID-4
Digital Torque Screwdriver |
2 Models
DID-05: Capacity: 4.500 lb-in / 50.00 N-cm
DID-4:Capacity: 35.00 lb-in / 400.0 N-cm

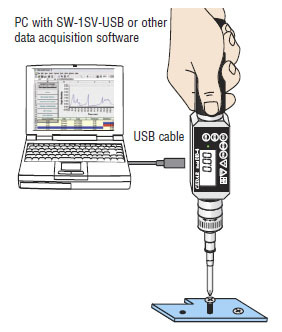

The DID is a torque measuring manual screwdriver designed for lab and production use. The large LCD display measures bi-directional torque in real-time or peak modes. USB data output allows the user to graph torque vs time with optional SW-1SD software.
The DID has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes
assembly errors by identifying mis-tightening and/or defective screws. Built-in ratcheting clutch allows for convenient tightening or loosening. Use the 800 internal memory for data recall or USB download for SPC.
The DID substantially reduces scrap and rework costs by eliminating over and undertightening
and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies. |
 Includes NIST Traceable Calibration Certificate, ISO-17025 Cert Optional | | Peak, Real Time and Peak Down measuring mode (selectable) | | Statistics: number of data, Max, Min, Avg | | Programmable screw tightening counter | | DID-4 features CW, CCW ratchet and fixed operation | | Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m | | Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use |
| | Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing | | USB data output for SPC capability | | 800 data memory for recall or for SPC download | | Programmable Auto Zero function resets unit to zero for easy operation | | Ergonomic and light weight, yet ruggedly constructed | | 2 Phillips tips, AC charger and carrying case included | | 2-Year Warranty |
|
| Model |
Capacity | Resolution |
| DID-05 |
69.50 in-oz
4.500 in-lb
5.000 kg-cm
50.00 N-cm | 0.01 in-oz
0.001 in-lb
0.001 Kg-cm
0.01 N-cm |
| DID-4 |
560.0 in-oz
35.00 in-lb
40.00 kg-cm
400.0 N-cm
4.000 N-m | 0.1 in-oz
0.01 in-lb
0.01 Kg-cm
0.1 N-cm
0.001 N-m | | |
|
TSD
Torque Screwdriver |  |
9 Programmable Target Torque Setpoints Real time & Peak Torque Measurement | | Click image for more info | | ___________________________________________ |
|
SW-1
Data Acquisition Software for Force Gauges & Torque Gauges |  |
Full SPC and graphing capabilities Automates your data collection Provides a running log of all measurements along with a chart of the data as well as statistical information | | Click image for more info | | ___________________________________________ |
|
MGT
Digital Torque Gauge |  |
Display "real-time" or "peak" force | | Click image for more info | | ___________________________________________ |
|
HTG2
Digital Torque Gauge with programmable setpoints |  |
Display "real-time" or "peak" force | | Click image for more info
|
| | | | Model DID is supplied as a complete kit the screwdriver, 2 Phillips bits, Universal (100-240V) AC adapter/charger and carrying case.
The DID-04 includes a 4mm stepless one-way clutch phillips bit and a standard 4mm phillips bit |
 |
| Accuracy |
+/- 0.5% F.S., +/- 1 LSD |
| Display |
4 digit LCD |
| Operation |
CW, CCW and fixed position (DID-4 Only) |
| Measuring Modes |
|
| PP |
Peak Mode displays PEAK torque value that will not change until a higher value is measured |
| PD |
Peak Down Mode Captures first peak down value above the PDLO |
| Real Time |
Displays transient torque values |
| C |
Real-time Output 180 data per second |
| GO/NO GO testing |
Programmable High and Low setpoints with both audible beep and Green/Red LED indicator |
| Statistics |
Number of data, maximum, minimum and average |
| Data Transfer |
ASCII, 19200 bps, USB miniB cable |
| Data Memory |
800 data |
| Batch Counter |
1-99 (CW only) |
| Power Supply |
Ni-Cad rechargeable batteries 1.2V×4cells 600mAh |
| Auto Power Save |
Automatic switch off after 10 minutes of non-use |
| Charging Time |
From empty - less than 5hours |
| Working Time |
12 hours continuous use |
| Accessories |
AC/DC Adapter/Charger, 100~230VAC, 2 Phillips bits, NIST certificate |
| Warranty |
2-Years |
|
|
