TSB

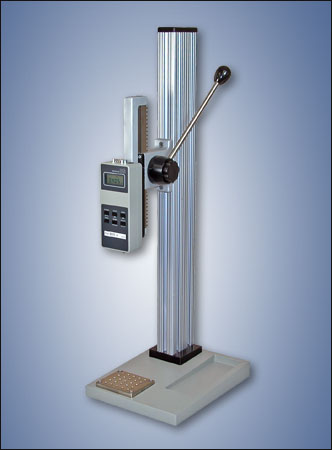

Manual Test Stand |
 The lever operated Force Measurement Test Stand Model TSB is an economical solution for quick-action tensile testing and compression testing of up to 100 lb of force. Constructed of rugged components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. |
 Loading lever can be positioned in 30º increments for ease of peration | | Precision ground rack for smooth precision motion |
| | Mountinig holes for bench mounting | | Low force friction brake |
|
| Capacity |
100 lb (500 N) |
| Stroke |
6" (152 mm) without travel stops
2.75" (69.9 mm) with travel stops |
| Dimensions |

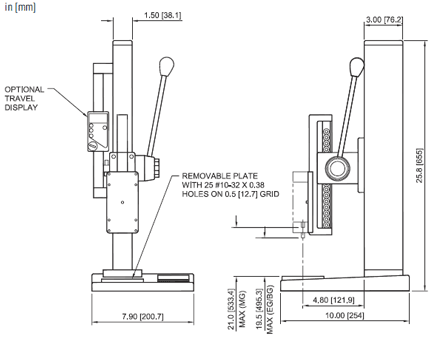

Refer to dimensions above |
| Weight |
12 lb (5.4 Kg) |
| Compatible Gauges |
MG and BG |
| Warranty |
3 years |
|
BG
Digital Force Gauge |  |
RS-232, Mitutoyo and analog outputs Selectable units of measurement | | Click image for more info | | ___________________________________________ |
|
MG
Economical Digital Force Gauge - Push Pull Gauge |  |
User-selected units of Pounds, Kilograms or Newtons 3 Year Warranty | | Click image for more info
|
|
|
