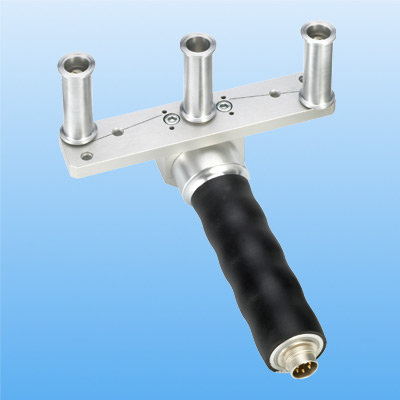

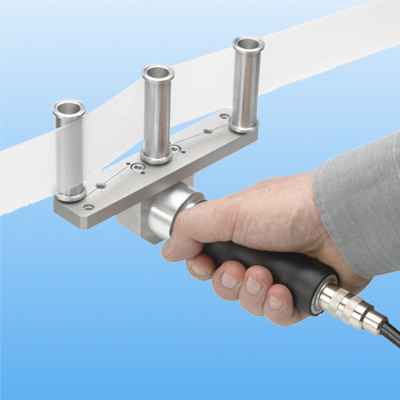

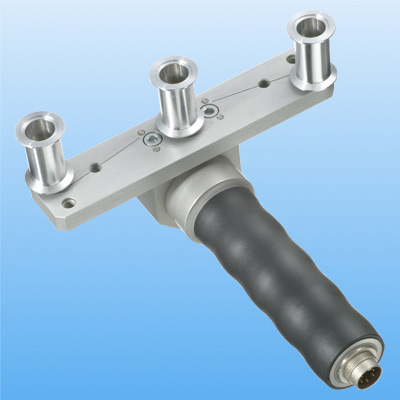

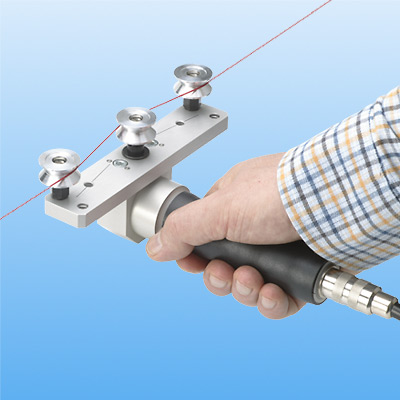

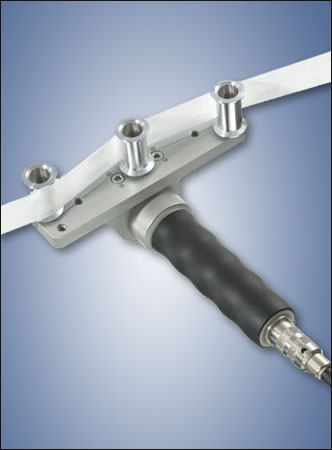

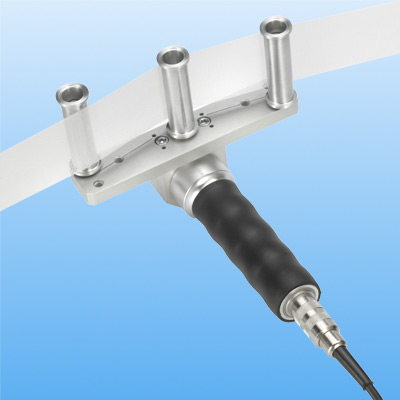

 for measuring monofilament textiles, copper- and steel wires, healds, carbon fibres up to 2.0 mm Ø, as well as tapes, belts, thread groups, films, foils, magnetic tapes, etc. | | customized guide rollers optional | | easy handling even when inserting into running products in cramped quarters | | effective overload protection for uninterrupted availibility | | measuring path: 100, 120 or 150mm |
| smallest possible angle of contact (10°) means minimum impact by:
- inherent stiffness
- acceleration torques

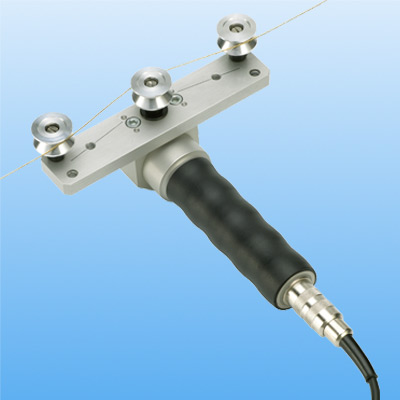

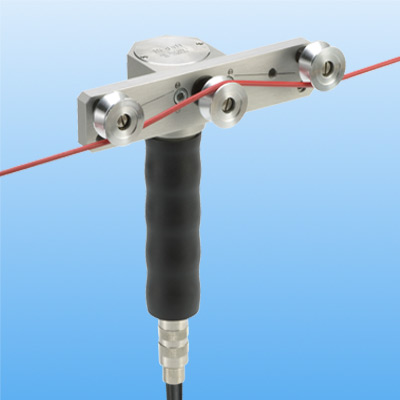

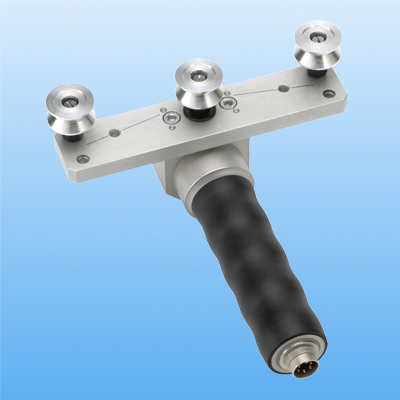

- inertial forces due to deflection | | 3 ball-bearing aluminium rollers with V-groove, root Ø 16mm | | excellent long-term stability and high precision for reproducible measuring results | | diameter, stiffness, weight and speed of the product being measured have no influence on measuring accuracy |
|
Features
