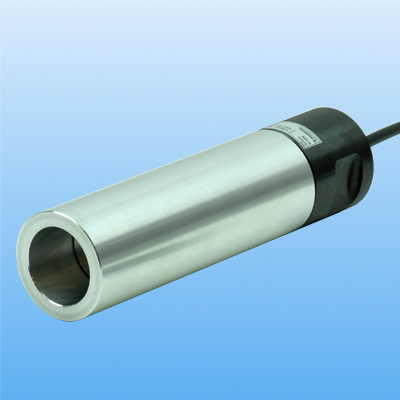

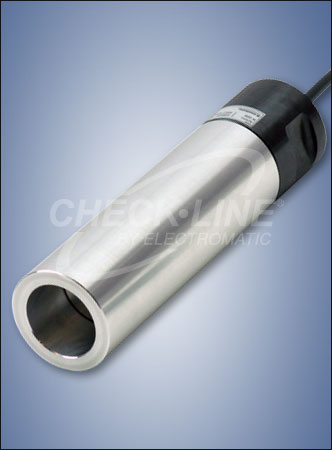

RMA-CSW
Cantilever Measuring Roll |
RMA-CSW Cantilever measuring rolls are used for direct tension measurement in moving webs of paper, films, foils, textiles or metals. Defined and setpoint controlled web tension ensures high product quality and is the basis for a minimum of machine down-times.
The compact RMA-CSW measuring rolls fulfill 2 functions at once:
- measurement of tension in the web
- guiding and deflecting the product web
|

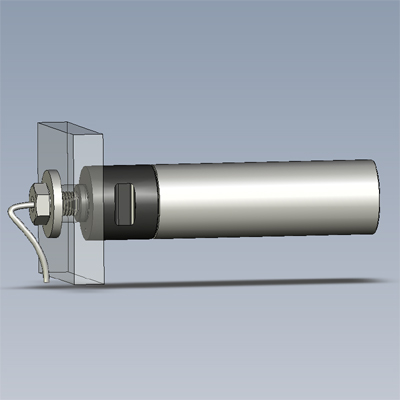

 Direct, radial force transfer | | Easy installation thanks to flange mounting | | High precision and excellent long-term stability |
| | High spring constants for the sensor permit high rotation speed ratings for the deflector roll | | Compact design |
|
|
RMA
Radial Force Measuring Axle |  |
High spring constants for the sensor permit high rotation speed ratings for the deflector roll High precision and excellent long-term stability | | Click image for more info | | ___________________________________________ |
|
RMA-DS
Radial Force Measuring Axle |  |
Direct, radial force transfer High spring constants for the sensor permit high rotation speed ratings for the deflector roll | | Click image for more info | | ___________________________________________ |
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors
0-10VDC analog output
| | Click image for more info | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|
MU621
Tension Indicator/Amplifier Console |  |
for strain gauge sensors 1 to 4 measuring channels | | Click image for more info
|
|
|
Features
