SK 224 FM
High-Capacity, Radial Force
Online Tension Sensor |
3 Ranges
500 KG (1100 LBS/5000N)
1000 KG (2200 LBS/10000N)
1500 KG (3300 LBS/15000N)

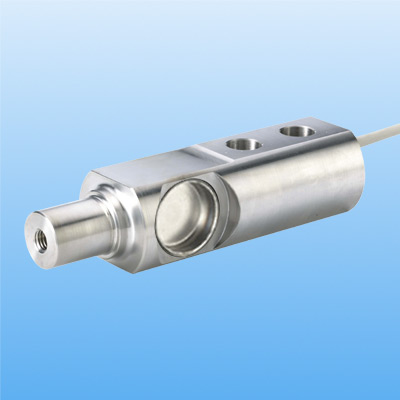

Completely sealed tension sensor is constructed from stainless steel with an IP67 waterproof rating designed for use in a wide variety of tension/force sensing application, even when submerged in water. Also suitable for high force application as well as those application where there is a significant quantity of airborne particulate or chemicals.

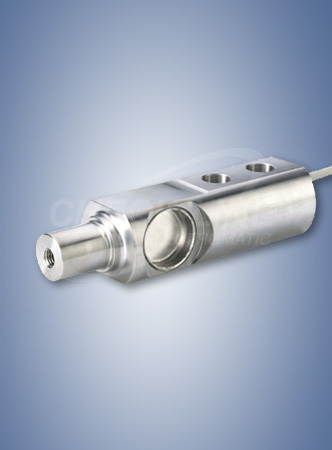

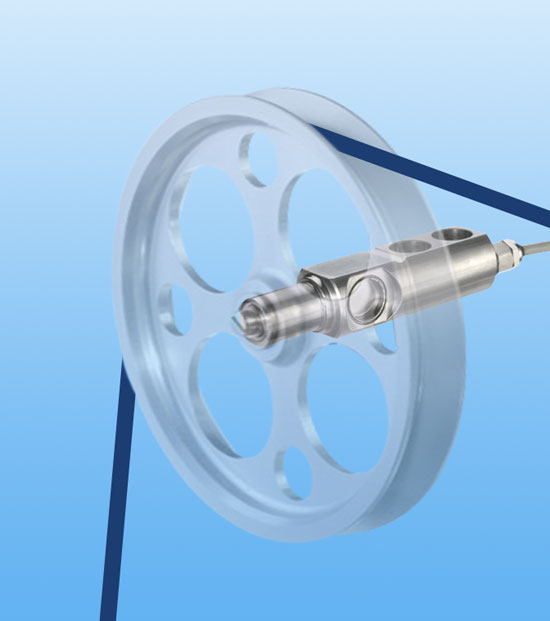

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. This sensor is supplied with a 17mm diameter, non-rotating bearing journal typically used with customer-supplied rollers or guide pulleys.
|

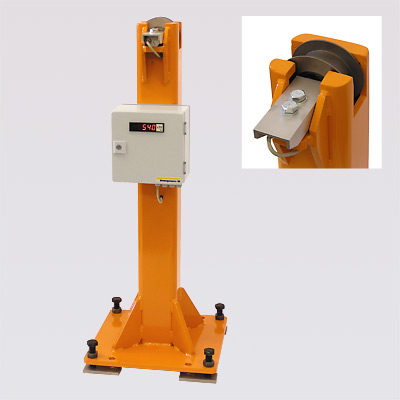

 A single-roller system designed to use an existing reversing point for tension measurement | | Rugged stainless steel housing is environmentally sealed
| | Supplied with a 10 ft. (3 m) integrated shielded cable. Optional lengths are available |
| | Completely sealed sensor fabricated from stainless steel is IP67 Waterproof rated | | Overload protection up to 800% | | Resolution of 0.1% and better |
|
|
TS621
Strain Gauge Amplifier |  |
Designed for use with a wide range of strain-gauge-based force, load and tension sensors
0-10VDC analog output
| | Click image for more info | | ___________________________________________ |
|
DPM502
Digital Tension Indicator |  |
Selectable “damping function” reduces display fluctuations 24V DC power supply with galvanic isolation | | Click image for more info | | ___________________________________________ |
|
MU621
Tension Indicator/Amplifier Console |  |
for strain gauge sensors 1 to 4 measuring channels | | Click image for more info
|
|

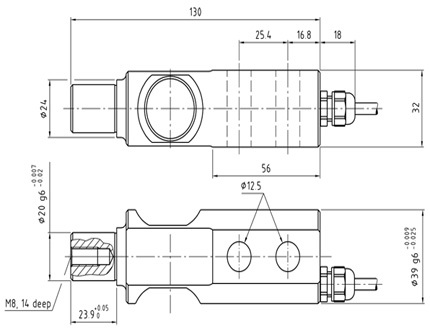

Measuring Ranges
|
500 KG (1100 LBS/5000N)
1000 KG (2200 LBS/10000N)
1500 KG (3300 LBS/15000N)
|
|
Measuring Principle
|
Strain Gauge
|
|
Accuracy
|
±0.5% Full Scale or better
|
|
Sensor Excitation
|
10 VDC (12 VDC, max.)
|
|
Sensor Output
|
1.5 mV/V
|
|
Input Resistance
|
1000 Ohms
|
|
Output Resistance
|
1000 Ohms
|
|
Overload Protection
|
400 - 800%
|
|
Deflection
|
0.07mm (max.)
|
|
Housing Material
|
Stainless Steel
|
|
Environmental Protection
|
IP67 (Water-Proof)
|
|
Cable Type
|
4.5 mm diameter shielded cable with bare leads
|
|
Cable Length
|
10 ft. (3 meter) integrated cable, longer lengths available. Inquire
|
|
Operating Temperature
|
15 to 122° F (-10 to 50° C)
|
|
Sensor Output
|
1.5mV/V
|
|
Fequency Responce
|
5 msec (200 Hz)
|
|
Zero Adjustment
|
±45%
|
|
Weight
|
1100g
|
|
|
