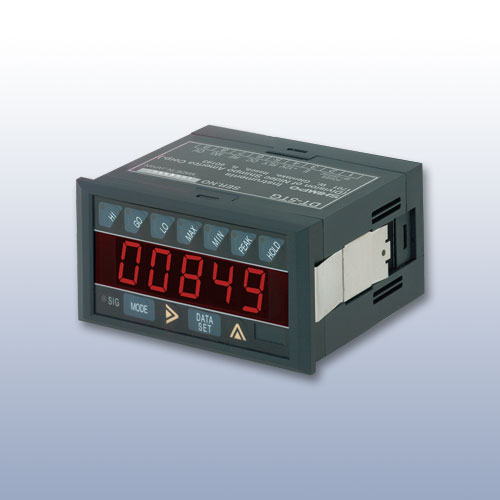

DT-5TG
Multi-Purpose Panel Tachometer |
3 Models Available
DT-5TG-0 - Panel Tach Without module connectors
DT-5TG-1 - Panel Tach with 1 connector for 1 module
DT-5TG-2 - Panel Tach with 2 connectors for 1 or 2 modules
Accurately display RPM, surface speed, flow or production data scaled to any engineering units.
An additional mode displays the elapsed time required to travel a fixed distance at a pre-selected speed for baking and similar conveyor applications.
One or two Plug-In Modules can be added to enhance the DT-5TG capabilities to meet your application requirements. |
 User-set Hi and Lo limits | | Snap-in installation without tools, brackets or screws mounted into panel cutout 92x45 mm | | Accepts various modules;
works with a variety of sensors | | Fully scalable to set value in desired engineering units | | Highly accurate |
| | User-set display update time, decimal points and scalable to any engineering units | | Provides 12 V DC to power an external sensor | | Set-up data is easily entered via front panel keys and is not lost during power failures | | Powered by 85 - 264VAC or optionally, 24V DC | | Self-testing ability |
|
| P/N |
Type |
Description |
| FV |
ANALOG OUTPUT
for recording and data acquisition |
Provides 0-10 V DC or 4-20
mA output proportional to the input frequency. A 12-bit D/A converter is used. |
| CP |
RELAY CONTACT
for alarms and control systems |
Provides 3 separate SPST
relay contacts working in conjunction with the HI, GO & LO LED's on the front panel. |
|
| Operating
Mode: |
Rate
Measurement |
Elapse Time
Counter |
| Display Selections: |
0-9.9999 |
99.99 seconds |
| 0-99.999 |
99 minutes 59
seconds |
| 0-999.99 |
99 hours 59 minutes |
| 0-9,999.9 |
| 0-99,999 |
| Measuring Range: |
10-99,999
rpm (@ 1 pulse per rev.) |
| 0.2-30,000
rpm (@ 60 pulses per rev.) |
| Display: |
5-digit
LED, 0.56" (14.2 mm) high |
| Accuracy: |
±
0.008% or ± 1 digit |
| Number
of PPR: |
1-9,999
pulses/rev (selectable) |
| Input
Signal Maximum Frequency: |
Sine
wave: 10kHz |
| Square
wave: 30kHz |
| Open
Collector: 30kHz |
| Contact
closure: 20Hz |
| Input Signal Amplitude: |
Sine
wave: 0.3-30 V P-P |
| Square
wave: LO: 0-1.5 V, HI: 4-30 V |
| Input
Impedance: |
10
k-Ohms for magnetic pickup, rotary pulse generator and proximity switch |
| Voltage
Output |
12 V DC
±5% (50 mA max.) to power sensors |
| Applicable
Sensors: |
Rotary
pulse generator, magnetic pickup, proximity switch, retro-reflective optical |
| Ambient
Temperature: |
32º -
113º F (0-45º C) |
| Power
Consumption: |
1 W (5 W
when optional modules are used) |
| Voltage
Requirement: |
85-265 V
AC, 50/60Hz
Option 24VDC for 9-35V DC |

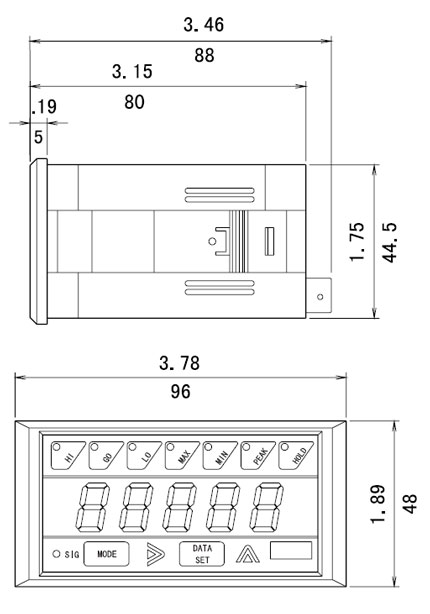

| Dimensions: |
3.46" L x
1.88" H x 3.78" D (8 L x 48 H x 96 D mm) includes bezel and fits 1/8 DIN cutout |
| Weight: |
0.55
lbs. (250 g) |
| Cutout Dimensions: |
92W X 45H (mm) |
|
|
MCS-655
Photo-Reflective Sensor |  |
Incorporates a complimentary switching voltage output | | Click image for more info | | ___________________________________________ |
|
MCS-625
Photo Reflective Sensor |  |
The MCS-625 has an open collector output and requires a pull up resistor | | Click image for more info | | ___________________________________________ |
|
RS-220HR
Photo Reflective Sensor |  |
A general purpose sensor, featuring an operating range up to 500Hz | | Click image for more info | | ___________________________________________ |
|
MP-10
Magnetic Pick-Up Sensor |  |
pickup provides a sine wave output whenever there is an abrupt change from non-magnetic to magnetic material moving past the sensor pole. | | Click image for more info
|
|
|
