DS-12V
Digital Porta-Strobe |
As of June 2009 the DS-12V is no longer available. We recommend the DT-315AEB as a replacement, click for more info

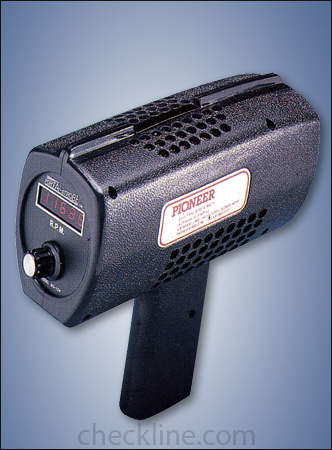

The DS-12V Porta-Strobe stroboscope is ideal for speed measurements and the  examination of motor rotors, gears, cams, shafts, turbines, fans, vibrating parts, liquid spray patterns, leaks, etc.
|
 Longest battery life of any portable strobe - three hours continuous use | | 0-12,000 FPM range; Locking trigger |
| | Includes NIST-Traceable certificate | | Longest flash tube life of any portable strobe - two billion flashes |
|
|
22-95
Flash Tube |  |
Flash tube for DS-303 & DS-12V Stroboscopes. | | Click image for more info
|
| Display Range |
0 to 12,000 flashes per minute (FPM) |
| Display Output |
5 digit LED |
| Resolution |
± 1 FPM |
| Flash Duration |
1 microsecond |
| Flashtube Life |
Two billion flashes |
| Locking Power Switch |
Press-to-operate mechanical switch |
| Power Requiremetns |
12 V, 8 AH battery (model MM-12ATM) |
| Dimensions |
9" x 8.5" x 4" |
| Construction |
High impact plastic |
| Weight |
2 lbs (strobe); 8.5 lbs (battery pack); 9 lbs (AC power supply) |
| Operating / Storage Environment |
32 - 114 ºF / 0 - 125 ºF |
|
|
Features
