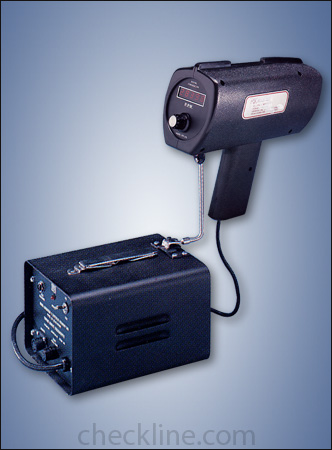

DS-303
Digital Stroboscope - DISCONTINUED ITEM |
As of June 2006 the DS-303 is no longer available. We recommend the DT-311A as a replacement, click for more info
Pioneer's AC powered portable stroboscopes are ideal for speed measurement and the examination of motor rotors, gears, cams, shafts, turbines, fans, vibrating parts, liquid spray patterns, leaks, etc. |
 60-30,000 FPM range; Locking trigger | | External trigger capabilities | | Includes NIST-traceable certificate |
| | Precise digital readout (DS-303 models) | | AC line powered |
|
|
22-95
Flash Tube |  |
Flash tube for DS-303 & DS-12V Stroboscopes. | | Click image for more info
|
| Display Range |
60 to 30,000 flashes per minute (FPM) |
| Display Output |
5 digit LED (DS-303 models) |
| Resolution |
+/-1 RPM (DS-303 models) |
| Flash Duration |
1 microsecond (DS-303 models) |
| Flashtube Life |
600,000,000 flashes |
| Locking Power Switch |
Press-to-operate mechanical switch |
| External Trigger |
DTL\TTL (DS-303ST) |
| Power Requirements |
120 V, 60 Hz (240 V, 50/60 Hz models available) |

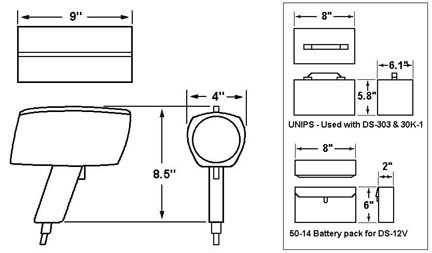

| Dimensions |
9" x 8.5" x 4" (strobe unit) |
| Construction |
High impact plastic |
| Weight |
2 lbs (strobe); 9 lbs (AC power supply) |
| Operating/Storage Environment |
32-114°F / 0-125°F |
|
|
Features
