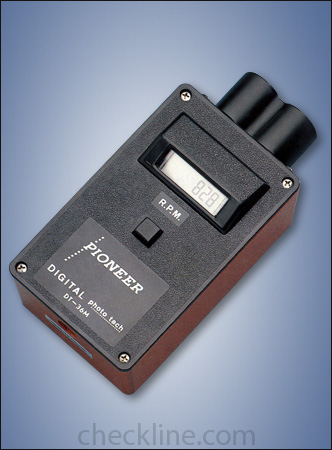

DT-36M
Digital Photo Tachometer |
As of June 2004 the DT-36M is no longer available. We recommend the CDT-1000HD as a replacement, click for more info
The easy-to-use Pioneer DT-36M tachometer allows accurate measurement of RPM in almost any environment. Simply aim the highly-visible light beam at a reflective mark placed on a rotating device, push the button and the RPM reading is immediately displayed. No contact with the shaft or wheel is necessary. |
 Longest measurement range of any hand-held photo tachometer | | Easy-to-use one-button operation | | External trigger capabilities |
| | Precise digital readout; 60-50,000 RPM range | | Includes traceable certificate | | Durable—the reliable industrial workhorse for over 20 years |
|
| Display |
5 Digit LCD |
| Display Range |
60 to 50,000 RPM |
| Measurement Range |
6 to 30 inches |
| Resolution |
+/-1 RPM over the entire range |
| Photocell |
Hermetically sealed cadmium selenide |
| Memory Operation |
Continuous |
| Power Switch |
Press-to-operate mechanical switch |
| External Trigger |
DTL\TTL compatible 1/8" standard jack |
| Power Requirements |
Two 1.5 V "AA" batteries and one 9 V alkaline battery (included) |
| Dimensions |
3.75" x 7.75" x 2.5" |
| Construction |
High impact plastic |
| Weight |
Approximately 1.75 pounds, (including internal batteries) |
| Operating/Storage Environment |
32 – 114°F / 0 – 125°F |
|
|
Features
